Product Summary

The AD2S82AHP is a monolithic 10-, 12-, 14- or 16-bit tracking resolver-to-digital converter contained in a 44-lead J leaded PLCC package. Two extra functions are provided in the new surface mount package–COMPLEMENT and VCO output. The AD2S82AHP converters allow users to select their own dynamic performance with external components. This allows the users great flexibility in defining the converter that best suits their system requirements. The AD2S82AHP allows users to select the resolution to be 10, 12, 14 or 16 bits and to track resolver signals rotating at up to 1040 revs per second (62,400 rpm) when set to 10-bit resolution. The AD2S82AHP converts resolver format input signals into a parallel natural binary digital word using a ratiometric tracking conversion method. This ensures high-noise immunity and tolerance of lead length when the converter is remote from the resolver.

Parametrics

AD2S82AHP absolute maximum ratings: (1)+VS: +14 V dc; (2)–VS: –14 V dc; (3)+VL: +VS; (4)Reference: +14 V to –VS; (5)SIN: +14 V to –VS; (6)COS: +14 V to –VS; (7)Any Logical Input: –0.4 V dc to +VL dc; (8)Demodulator Input: +14 V to –VS; (9)Integrator Input: +14 V to –VS; (10)VCO Input: +14 V to –VS; (11)Power Dissipation: 860 mW; (12)Operating Temperature Commercial (JD): 0 to +70℃; Industrial (HP, JP, KP, LP): –40 to +85℃; (13)Storage Temperature (All Grades): –65 to +150℃; (14)Lead Temperature (Soldering, 10 sec): +300℃.

Features

AD2S82AHP features: (1)Monolithic (BiMOS ll) Tracking R/D Converter; (2)Ratiometric Conversion; (3)Low Power Consumption: 300 mW Typ; (4)Dynamic Performance Set by User; (5)Velocity Output; (6)ESD Class 2 Protection (2,000 V Min); (7)44-Lead PLCC Package; (8)10-, 12-, 14- and 16-Bit Resolution Set by User; (9)High Max Tracking Rate 1040 RPS (10 Bits); (10)VCO Output (Inter LSB Output); (11)Data Complement Facility; (12)Industrial Temperature Range.

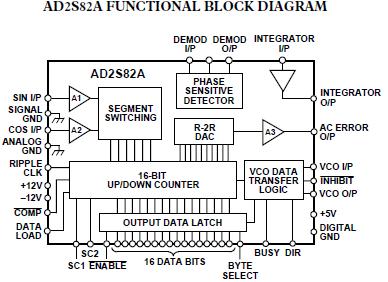

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AD2S82AHPZ-REEL
AD2S82AHPZ-REEL

IC CONV R/D MONO VAR RES 44PLCC
Data Sheet
0-500: $37.78
AD2S82AHPZ
AD2S82AHPZ

IC R/D CONV TRACKING 44PLCC
Data Sheet
0-1: $45.34
1-10: $42.50
10-100: $38.25
100-250: $37.78
AD2S82AHP-REEL
AD2S82AHP-REEL

IC CONV R/D MONO VAR RES 44PLCC
Data Sheet
0-500: $41.46
AD2S82AHP
AD2S82AHP

IC R/D CONV TRACKING 44PLCC
Data Sheet
0-4: $49.76
