Product Summary

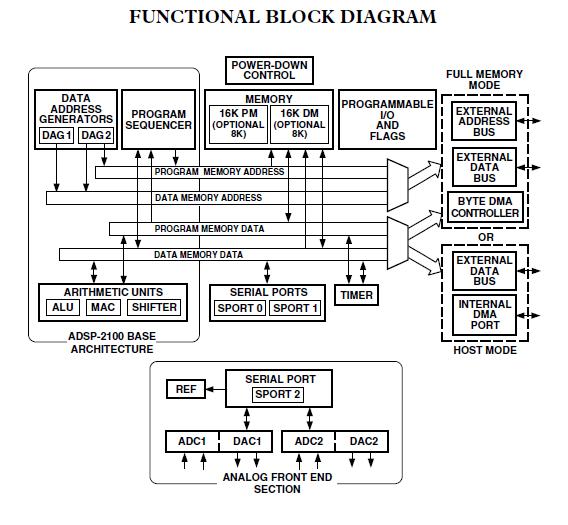

The AD73422BB-80 is a single device incorporating a dual analog front end and a microcomputer optimized for digital signal processing (DSP) and other high speed numeric processing applications. The AD73422BB-80’s analog front end (AFE) section features a dual front-end converter for general purpose applications including speech and telephony. The AFE section features two 16-bit A/D conversion channels and two 16-bit D/A conversion channels.

Parametrics

AD73422BB-80 absolute maximum ratings: (1)AVDD, DVDD to GND: –0.3 V to +4.6 V; (2)AGND to DGND: –0.3 V to +0.3 V; (3)Digital I/O Voltage to DGND: –0.3 V to DVDD + 0.3 V; (4)Analog I/O Voltage to AGND: –0.3 V to AVDD + 0.3 V; (5)Operating Temperature Range; (6)Industrial (B Version): –20℃ to +85℃; (7)Storage Temperature Range: –40℃ to +125℃; (8)Maximum Junction Temperature: +150℃; (9)PBGA, θJA Thermal Impedance: 25℃/W; (10)Maximum Temperature: +225℃; (11)Time at Maximum Temperature: 15 sec; (12)Maximum Temperature Ramp Rate: 1.3℃/sec.

Features

AD73422BB-80 features: (1)AFE performance; (2)Two 16-Bit A/D Converters; (3)Two 16-Bit D/A Converters; (4)Programmable Input/Output Sample Rates; (5)78 dB ADC SNR; (6)77 dB DAC SNR; (7)64 kS/s Maximum Sample Rate; (8)–90 dB Crosstalk; (9)Low Group Delay (25 μs Typ per ADC Channel); (10)50 μs Typ per DAC Channel); (11)Programmable Input/Output Gain; (12)On-Chip Reference.
