Product Summary
The 74LCX08MTCX includes four 2-input AND gates. It is fabricated with advanced CMOS technology to achieve high speed operation while maintaining CMOS low power dissipation. The inputs tolerate voltages up to 7 V allowing the interface of 5V systems to 3 V systems. The device is available in 14-Lead TSSOP package.
Parametrics
About the maximum ratings: (1)VCC, supply voltage: -0.5 to +7.0 V; (2)VI, DC input voltage: -0.5 to +7.0 V; (3)VO, DC output voltage: -0.5 to VCC+ 0.5 V at output in HIGH or LOW state; (4)IIK, DC input diode current: -50 mA at VI ＜ GND; (5)IOK, DC output diode current: -50 mA at VO ＜ GND and +50 mA at VO＞VCC; (6)IO, DC output source/sink current: ±50 mA; (7)ICC, DC supply current per supply pin: ±100 mA; (8)IGND, DC ground current per ground pin: ±100 mA; (9)TSTG, storage temperature -65 to+150℃ .
Features
Features: (1)5 V tolerant inputs; (2)2.3 V–3.6 V VCC specifications provided; (3)5.5 ns tPD max (VCC=3.3 V), 10 μA ICC max; (4)power down high impedance inputs and outputs; (5)±24 mA output drive (VCC=3.0 V); (6)implements patented noise/EMI reduction circuitry; (7)latch-up performance exceeds JEDEC 78 conditions; (8)ESD performance: human body model> 2000 V and machine model>150V; (9)leadless Pb-Free DQFN package.

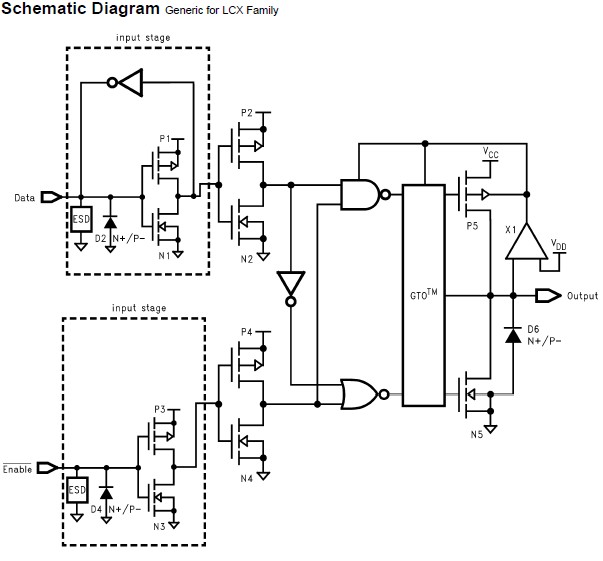

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 74LCX08MTC |
Fairchild Semiconductor |
Gates (AND / NAND / OR / NOR) Qd 2-Input AND Gate |
Data Sheet |
|
|
||||||||||||
|
74LCX08MTCX |
Fairchild Semiconductor |
Gates (AND / NAND / OR / NOR) Qd 2-Input AND Gate |
Data Sheet |
|
|
||||||||||||
 |
74LCX08MTCX_SF501639 |
|
IC GATE AND QUAD 2IN LV 14TSSOP |
Data Sheet |
Negotiable |
|
||||||||||||
