AT209S

PCI Arbiter, Clock Buffer, Zero delay buffer, STOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.90~1.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.90~1.50

PartNumber:: AT209S

Brand:: Analog Microelectronics - AME | Pack: SSOP | D/C: 04+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Ken's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-02-21

From Other Seller

Part Number:AT209S
US $0.90 - 1.50
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
CM2030-A0TR

US $0.92 - 2.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The AT209S is an integrated device that contains a PCI Arbiter and a Clock Buffer. PCI Arbiter extends system PCI devices without piecing other circuit to simplify design complexity and increase systems stability. PCI Arbiter also provides STOP input pin with that extended PCI devices instruct the master to prematurely end the transaction on the current data phase same as one in PCI specification. Clock Buffer is a high performance and low jitter zero delay buffer that provides synchronization between the input and output. The synchronization is established via CLKO feed back to the input of a build-in PLL.

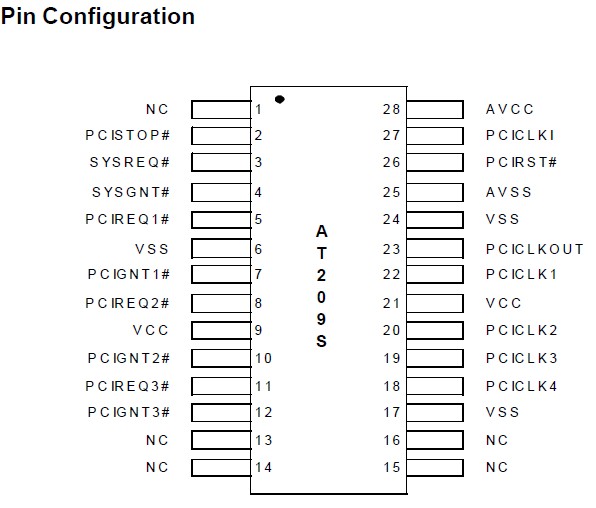

Parametrics

Quick reference data: (1)VCC, Power pin: 3.15v min, 3.3 v typ, 3.45 V max; (2)VSS, Ground pin: 0 V typ; (3)AVCC, Power pin for PLL: 3.15v min, 3.3v typ, 3.45 V max; (4)AVSS, Ground pin for PLL: 0 V typ; (5)Vil, Input low voltage: 0.8 V max for PCI Arbiter FSM; (6)Vih, Input high voltage: 2.0 V min for PCI Arbiter FSM; (7)Vol, Output low voltage: 0.4 V max for PCI Arbiter FSM; (8)Voh, Output high voltage: 2.4 nS min for PCI Arbiter FSM; (9)Tdcko, Output delay from PCICLK rising edge to output valid: 8 nStyp, 10nS max for PCI Arbiter FSM.

Features

Features: (1)PCI Arbiter Extend PCI Devices from One to Three; (2) PCI Clock Frequency Support PCI Clock range from 25MHz to 66MHz; (3)Zero delay buffer Generate four zero delay clock sources Support frequency range from 25MHz to 66MHz; (4)All AMEs Lead Free Products Meet RoHS Standards.
