Product Summary

The LM2575T-ADJ is a regulator. It provides all the active functions for a step-down (buck) switching regulator, capable of driving a 1A load with excellent line and load regulation. The LM2575T-ADJ is available in fixed output voltages of 3.3V, 5V, 12V, 15V, and an adjustable output version. Requiring a minimum number of external components, it is simple to use and include internal frequency compensation and a fixed-frequency oscillator. The LM2575T-ADJ offers a high-efficiency replacement for popular three-terminal linear regulators. It substantially reduces the size of the heat sink, and in many cases no heat sink is required. The applications of the LM2575T-ADJ include Simple high-efficiency step-down (buck) regulator, Efficient pre-regulator for linear regulators, On-card switching regulators and Positive to negative converter (Buck-Boost).

Parametrics

LM2575T-ADJ absolute maximum ratings: (1)Maximum Supply Voltage: 45V; (2)ON /OFF Pin Input Voltage: -0.3V ≤ V ≤ +VIN; (3)Output Voltage to Ground (Steady State): -1V; (4)Power Dissipation: Internally Limited; (5)Storage Temperature Range: -65 to +150℃; (6)Maximum Junction Temperature: 150℃; (7)Minimum ESD Rating (C = 100 pF, R = 1.5 kΩ): 2 kV; (8)Lead Temperature (Soldering, 10 sec.): 260℃.

Features

LM2575T-ADJ features: (1)3.3V, 5V, 12V, 15V, and adjustable output versions; (2)Adjustable version output voltage range, 1.23V to 37V (57V for HV version) ±4% max over line and load conditions; (3)Guaranteed 1A output current; (4)Wide input voltage range, 40V up to 60V for HV version; (5)Requires only 4 external components; (6)52 kHz fixed frequency internal oscillator; (7)TTL shutdown capability, low power standby mode; (8)High efficiency; (9)Uses readily available standard inductors; (10)Thermal shutdown and current limit protection; (11)P+ Product Enhancement tested.

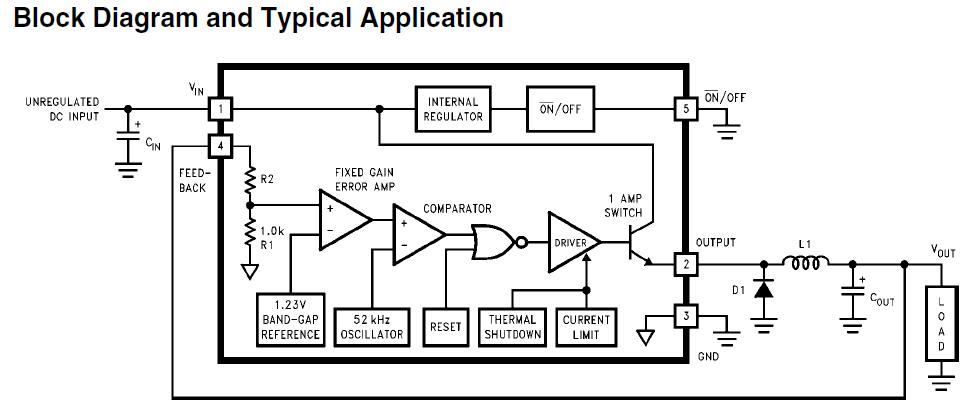

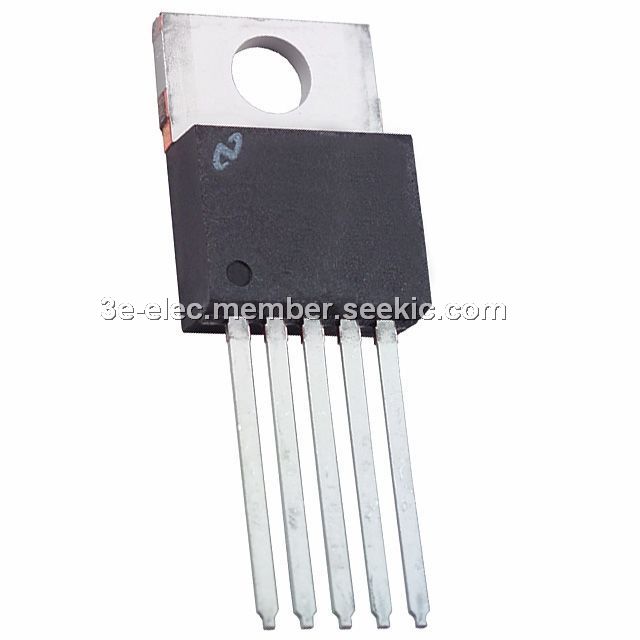

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
LM2575T-ADJ
LM2575T-ADJ

National Semiconductor (TI)

Switching Converters, Regulators & Controllers

Data Sheet

0-405: $1.16
405-540: $1.01
540-1035: $0.84
1035-2520: $0.78
LM2575T-ADJ/LB03
LM2575T-ADJ/LB03

National Semiconductor (TI)

Switching Converters, Regulators & Controllers

Data Sheet

0-405: $1.16
405-540: $1.01
540-1035: $0.84
1035-2520: $0.77
LM2575T-ADJG
LM2575T-ADJG

ON Semiconductor

Switching Converters, Regulators & Controllers 1A 1.23-37V ADJ Buck PWM

Data Sheet

0-1: $1.39
1-25: $1.18
25-100: $0.86
100-500: $0.74
LM2575T-ADJ/NOPB
LM2575T-ADJ/NOPB

National Semiconductor (TI)

Switching Converters, Regulators & Controllers 1A STEP-DOWN VLTG REG

Data Sheet

0-1: $1.47
1-25: $1.18
25-100: $1.06
100-250: $0.95
LM2575T-ADJ/LF03
LM2575T-ADJ/LF03

National Semiconductor (TI)

Switching Converters, Regulators & Controllers

Data Sheet

0-1: $1.81
1-25: $1.45
25-100: $1.31
100-250: $1.16
LM2575T-ADJ/LF02
LM2575T-ADJ/LF02

National Semiconductor (TI)

Switching Converters, Regulators & Controllers

Data Sheet

0-405: $1.16
405-540: $1.01
540-1035: $0.84
1035-2520: $0.77
