Product Summary
The SFH7225-Q is a Multi TOPLED mit LED und Fototransistor-Detektor.
Parametrics
Absolute maximum ratings: (1)operating temperature range:-40℃ to +100℃; (2)storage temperature range:-40℃ to +100℃; (3)reverse voltage:3V; (4)total power dissipation:80mW; (5)collector-emitter voltage:35V; (6)collector current:15mA; (7)collector surge current:75mA; (8)total power dissipation:90mW.
Features
Features: (1)Display function can be controlled by built-in phototransistor; (2)yellow LED; (3)Dominant wavelength:589 nm; (4)Silicon phototransistor; (5)Low saturation voltage; (6)Emitter and detector electrically isolated.

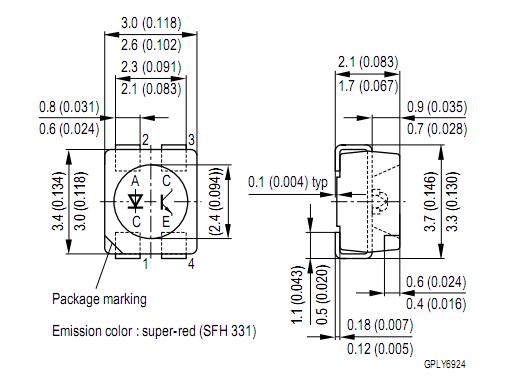

Diagrams
 |
