Product Summary

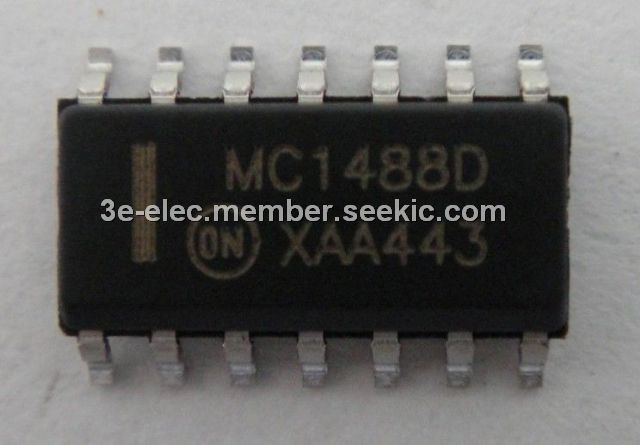

The MC1488D is a monolithic quad line driver designed to interface data terminal equipment with data communications equipment in conformance with the specifications of EIA Standard No. EIA–232D. Its current limited output is ±10 mA typical. And The MC1488D is compatible with All Motorola MDTL and MTTL Logic Families.
Parametrics
Maximum ratings (TA = +25°C, unless otherwise noted.): (1)Power Supply Voltage, VCC: + 15Vdc; VEE: – 15Vdc; (2)Input Voltage Range, VIR: – 15 ≤ VIR ≤ 7.0 Vdc; (3)Output Signal Voltage, VO: ±15 Vdc; (4)Power Derating (Package Limitation, SO–14 and Plastic Dual–In–Line Package) Derate above TA = + 25°C: PD: 1000mW; 1/RθJA: 6.7 mW/°C; (5)Operating Ambient Temperature Range, TA: 0 to + 75℃ ; (6)Storage Temperature Range, Tstg: – 65 to + 175℃.
Features
Features: (1)Current Limited Output ±10 mA typical; (2)Power–Off Source Impedance 300 W mininum; (3)Simple Slew Rate Control with External Capacitor; (4)Flexible Operating Supply Range; (5)Compatible with All Motorola MDTL and MTTL Logic Families.

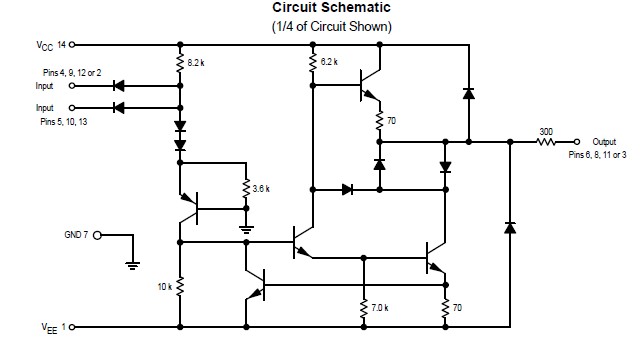

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 MC1488D1 |
STMicroelectronics |
Bus Transmitters Quad Line Driver |
Data Sheet |
Negotiable |
|
||||
 |
MC1488DR2G |
|
IC LINE DRIVER QUAD MONO 14-SOIC |
Data Sheet |
Negotiable |
|
||||
|
MC1488DR2 |
ON Semiconductor |
Buffers & Line Drivers Quad Line EIA-232D |
Data Sheet |
Negotiable |
|
||||
|
MC1488DG |
|
IC LINE DRIVER QUAD MONO 14-SOIC |
Data Sheet |
Negotiable |
|
||||
|
MC1488D1013TR |
STMicroelectronics |
Bus Transmitters Quad Line Driver |
Data Sheet |
Negotiable |
|
||||
 |
MC1488D |
ON Semiconductor |
Buffers & Line Drivers Quad Line EIA-232D |
Data Sheet |
Negotiable |
|
||||
