Product Summary

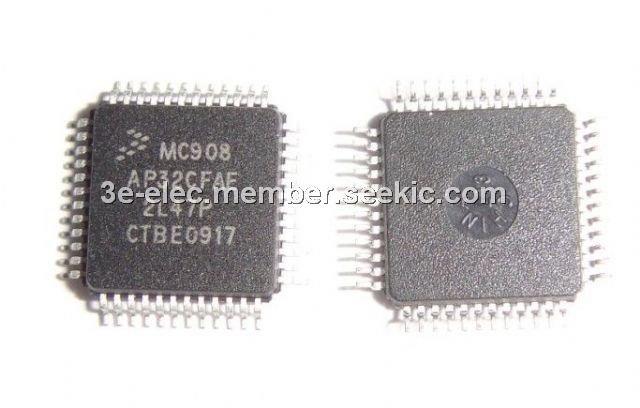

The MC908AP32CFAE is a member of the low-cost, high-performance M68HC08 Family of 8-bit microcontroller units (MCUs). All MCUs in the family use the enhanced M68HC08 central processor unit (CPU08) and are available with a variety of modules, memory sizes and types, and package types. There are some features of the CPU08 include the following: enhanced HC05 programming model, extensive loop control functions, 16 addressing modes (eight more than the HC05),16-bit Index register and stack pointer, etc.
Parametrics
Absolute maximum ratings: (1)Supply voltage, VDD: –0.3 to +6.0 V; (2)Input voltage All pins (except IRQ1) IRQ1 pin, VIN: VSS–0.3 to VDD +0.3v, VSS–0.3 to 8.5 V; (3)Maximum current per pin excluding VDD and VSS, I: ±25 mA; (4)Maximum current out of VSS, IMVSS: 100 mA; (5)Maximum current into VDD, IMVDD: 100 mA; (6)Storage temperature, TSTG: –55 to +150 ℃.
Features
Features: (1)High-performance M68HC08 architecture; (2)Fully upward-compatible object code with M6805, M146805, and M68HC05 Families; (3)Maximum internal bus frequency: 8-MHz at 5V or 3V operating voltage; ; (4)Clock input options: RC-oscillator; 32-kHz crystal-oscillator with 32MHz internal PLL; (5)User program FLASH memory with security(1) feature: 32,768 bytes; (6)On-chip RAM: 2,048 bytes ; (7)Two 16-bit, 2-channel timer interface modules (TIM1 and TIM2) with selectable input capture,; (8)output compare, and PWM capability on each channel; (9)Timebase module; (10)Serial communications interface module 1 (SCI); (11)Serial communications interface module 2 (SCI) with infrared (IR) encoder/decoder; (12)Serial peripheral interface module (SPI); (13)System management bus (SMBus), version 1.0/1.1 (multi-master IIC bus); (14)8-channel, 10-bit analog-to-digital converter (ADC).
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MC908AP32CFAE |
Freescale Semiconductor |
8-bit Microcontrollers (MCU) 32K FLASH 10 BIT ADC |
Data Sheet |
|
|
||||||||||||
|
MC908AP32CFAER |
Freescale Semiconductor |
8-bit Microcontrollers (MCU) 32K FLASH 10 BIT ADC |
Data Sheet |
|
|
||||||||||||
