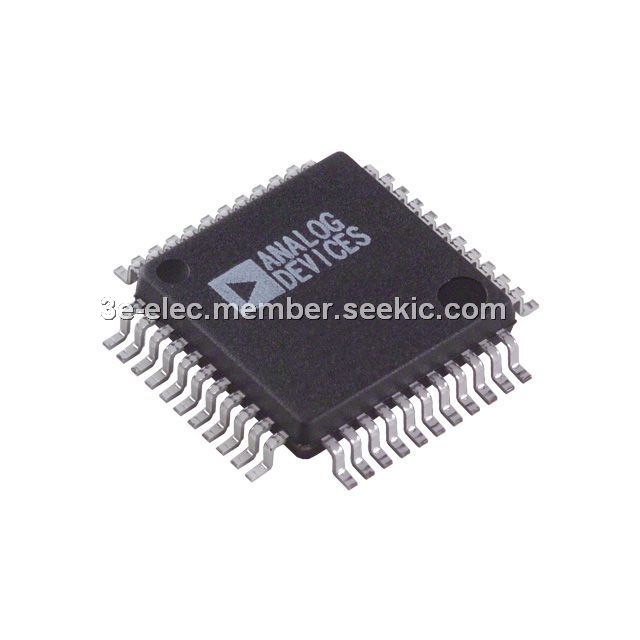

AD9260AS

ADC, QFP, –0.3 to +6.5 V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $25.00~46.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $25.00~46.00

PartNumber:: AD9260AS

Brand:: Analog Devices - ADI | Pack: QFP | D/C: 07+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Ken's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-02-20

From Other Seller

Part Number:AD9260AS
US $25.00 - 46.00
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
Quantity:

piece

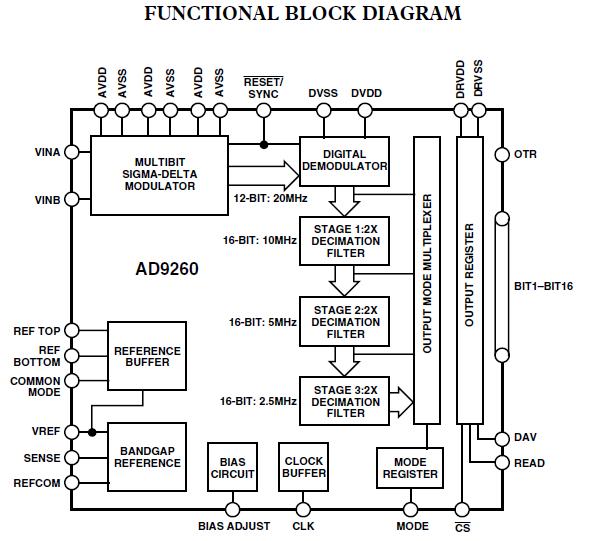

Product Summary

The AD9260AS is a 16-bit, high-speed oversampled analog-todigital converter (ADC) that offers exceptional dynamic range over a wide bandwidth. The AD9260AS is manufactured on an advanced CMOS process. High dynamic range is achieved with an oversampling ratio of 8× through the use of a proprietary technique that combines the advantages of sigma-delta and pipeline converter technologies. The AD9260AS is a switched-capacitor ADC with a nominal fullscale input range of 4 V. It offers a differential input with 60 dB of common-mode rejection of common-mode signals. The signal range of AD9260AS each differential input is ±1 V centered on a 2.0 V common-mode level.

Parametrics

AD9260AS absolute maximum ratings: (1)AVDD: –0.3 to +6.5 V; (2)DVDD: –0.3 to +6.5 V; (3)AVSS: –0.3 to +0.3 V; (4)AVDD: –6.5 to +6.5 V; (5)DRVDD: –0.3 to +6.5 V; (6)DRVSS: –0.3 to +0.3 V; (7)REFCOM: –0.3 to +0.3 V; (8)CLK, MODE, READ, CS, RESET: –0.3 to DVDD + 0.3 V; (9)Digital Outputs: –0.3 to DRVDD + 0.3 V; (10)VINA, VINB, CML, BIAS: –0.3 to AVDD + 0.3 V; (11)VREF:–0.3 to AVDD + 0.3 V; (12)SENSE: –0.3 to AVDD + 0.3 V; (13)CAPB, CAPT: –0.3 to AVDD + 0.3 V; (14)Junction Temperature: +150 ℃; (15)Storage Temperature: –65 to +150 ℃; (16)Lead Temperature (10 sec): +300 ℃.

Features

AD9260AS features: (1)Monolithic 16-Bit, Oversampled A/D Converter; (2)8xOversampling Mode, 20 MSPS Clock; (3)2.5 MHz Output Word Rate; (4)1.01 MHz Signal Passband w/0.004 dB Ripple; (5)Signal-to-Noise Ratio: 88.5 dB; (6)Total Harmonic Distortion: –96 dB; (7)Spurious Free Dynamic Range: 100 dB; (8)Input Referred Noise: 0.6 LSB; (9)Selectable Oversampling Ratio: 1x, 2x, 4x, 8x; (10)Selectable Power Dissipation: 150 mW to 585 mW; (11)85 dB Stopband Attenuation; (12)0.004 dB Passband Ripple; (13)Linear Phase; (14)Single +5 V Analog Supply, +5 V/+3 V Digital Supply; (15)Synchronize Capability for Parallel ADC Interface; (16)Twos-Complement Output Data; (17)44-Lead MQFP.
