Product Summary

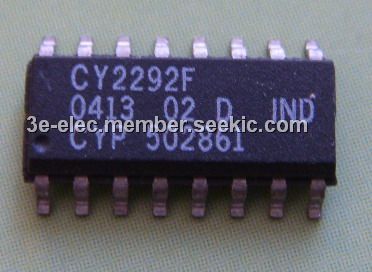

The CY2292F is a Three-PLL General-Purpose EPROM Programmable Clock Generator. The CY2292F is upwardly compatible with the industry standard ICD2023 and ICD2028 and continues their tradition by providing a high level of customizable features to meet the diverse clock generation needs of modern motherboards and other synchronous systems. The CY2292F can be configured for either 5V or 3.3V operation. The internal ROM tables use EPROM technology, allowing full customization of output frequencies. The reference oscillator has been designed for 10-MHz to 25-MHz crystals, providing additional flexibility.
Parametrics
CY2292F absolute maximum ratings: (1)Supply Voltage:–0.5V to +7.0V; (2)DC Input Voltage:–0.5V to +7.0V; (3)Storage Temperature:–65℃ to +150℃; (4)Max. Soldering Temperature (10 sec):260℃; (5)Junction Temperature:150℃; (6)Package Power Dissipation:750 mW; (7)Static Discharge Voltage:≤ 2000V.
Features
CY2292F features: (1)Three integrated phase-locked loops; (2)EPROM programmability; (3)field-program-mable device options; (4)Low-skew, low-jitter, high-accuracy outputs; (5)Power-management options (Shutdown, OE, Suspend); (6)Frequency select option; (7)Smooth slewing on CPUCLK; (8)Configurable 3.3V or 5V operation; (9)16-pin SOIC Package (TSSOP: F only).
Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() CY2292F |
![]() |
![]() IC CLKSYN FIELD PROG 3PLL 16SOIC |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||
![]() |
![]() CY2292FXC |
![]() Cypress Semiconductor |
![]() Clock Generators & Support Products 3 PLL Clk Syn COM |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() CY2292FXI |
![]() Cypress Semiconductor |
![]() Phase Locked Loops (PLL) 3 PLL Clk Syn COM |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() CY2292FZX |
![]() Cypress Semiconductor |
![]() Phase Locked Loops (PLL) 3 PLL Clk Syn COM |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() CY2292FXCT |
![]() Cypress Semiconductor |
![]() Phase Locked Loops (PLL) 3 PLL Clk Syn COM |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() CY2292FXIT |
![]() Cypress Semiconductor |
![]() Phase Locked Loops (PLL) 3 PLL Clk Syn COM |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() CY2292FZXIT |
![]() Cypress Semiconductor |
![]() Phase Locked Loops (PLL) 3 PLL Clk Syn |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() CY2292FZXT |
![]() Cypress Semiconductor |
![]() Phase Locked Loops (PLL) 3 PLL Clk Syn COM |
![]() Data Sheet |
![]()
|
|
