Product Summary
The CY7B933-JI HOTLink Receiver is a point-to-point communication building block that transfers data over high-speed serial links (fiber, coax, and twisted pair). Standard HOTLink data rates range from 160-330 Mbits/second. Higher speed HOTLink is also available for high speed applications (160-400 Mbits/second), as well as for those Low Cost applications HOTLink-155 (150-160 Mbits/second operations). Figure 1 illustrates typical connections to host systems or controllers. Eight bits of user data or protocol information are loaded into the HOTLink transmitter of the CY7B933-JI and are encoded. Serial data is shifted out of the three differential positive ECL (PECL) serial ports at the bit rate (which is 10 times the byte rate).
Parametrics
CY7B933-JI maximum ratings: (1)Storage Temperature: -65℃ to +150℃; (2)Ambient Temperature with; (3)Power Applied: -55℃ to +125℃; (4)Supply Voltage to Ground Potential: -0.5V to +7.0V; (5)DC Input Voltage: -0.5V to +7.0V; (6)Output Current into TTL Outputs (LOW): 30 mA; (7)Output Current into PECL outputs (HIGH): -50 mA; (8)Static Discharge Voltage: >4001V; (9)Latch-Up Current: >200 mA.
Features
CY7B933-JI features: (1)Fibre Channel compliant; (2)IBM ESCONcompliant; (3)DVB-ASI compliant; (4)ATM compliant; (5)8B/10B-coded or 10-bit unencoded; (6)Standard HOTLink: 16030 Mbps; (7)High Speed HOTLink: 16000 Mbps for high speed applications; (8)Low Speed HOTLink: 15060 Mbps for Low Cost Fiber applications; (9)TTL synchronous I/O; (10)No external PLL components; (11)Triple PECL 100K serial outputs; (12)Dual PECL 100K serial inputs; (13)Low power: 350 mW (Tx), 650 mW (Rx); (14)Compatible with fiber-optic modules, coaxial cable, and twisted pair media; (15)Built-In Self-Test; (16)Single +5V supply; (17)28-pin SOIC/PLCC/LCC; (18)0.8m BiCMOS.

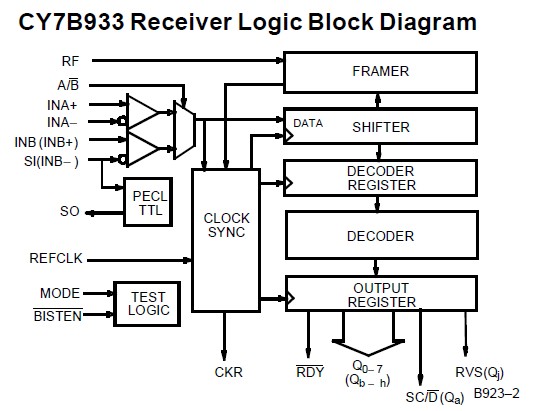

Diagrams
 |
