Product Summary
The EP4CE40F23C8N is a high-performance, low-power FPGA.
Parametrics
EP4CE40F23C8N absolute maximum ratings: (1)supply voltage:1.15 V to 1.25V; (2)Operating Temperature:0℃ to 85℃.
Features
EP4CE40F23C8N features: (1)6K to 155K logic elements; (2)Up to 6 Mb of embedded memory; (3)Up to 360 18 × 18 multipliers for DSP processing intensive applications; (4)Protocol bridging applications for under 1.5W total power; (5)Data rates up to 3.125 Gbps; (6)8B10B encoder/decoder; (7)8-bit or 10-bit PMA to PCS interface; (8)Byte serializer/deserializer; (9)Word aligner; (10)Rate matching FIFO; (11)TX bit slipper for CPRI; (12)Electrical idle; (13)Dynamic channel reconfiguration allowing you to change data rates and protocols on-the-fly; (14)Static equalization and pre-emphasis for superior signal integrity; (15)150 mW per channel power consumption; (16)Flexible clocking structure to support multiple protocols in a single transceiver block; (17)×1, ×2, and ×4 lane configurations; (18)End point and root port configurations; (19)Up to 256-byte payload; (20)One virtual channel; (21)2 KB retry buffer; (22)4 KB RX buffer; (23)LVDS interfaces up to 840 Mbps TX, 875 Mbps RX; (24)Support for DDR2 SDRAM interfaces up to 200 MHz; (25)Support for QDRII SRAM and DDR SDRAM up to 167 MHz; (26)Up to eight PLLs per device; (27)Offered in commercial and industrial temperature grades.

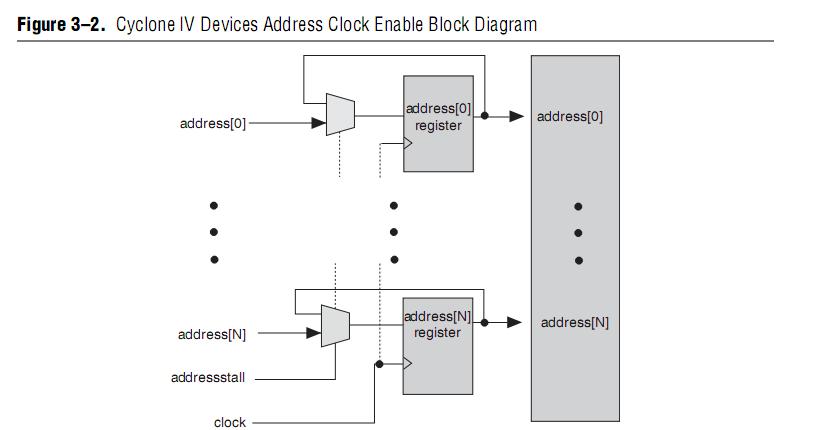

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 EP4CE40F23C8N |
|
IC CYCLONE IV FPGA 40K 484FBGA |
Data Sheet |
|
|
||||||
