Product Summary

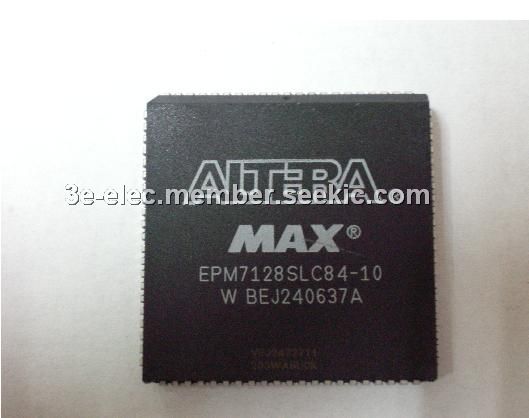

The EPM7128SLC84-10 is a programmable logic device. The EPM7128SLC84-10 is a high-density, high-performance PLD. It is based on Altera second-generation MAX architecture. Fabricated with dvanced CMOS technology, the EEPROM-based EPM7128SLC84-10 provides 600 to 5,000 usable gates, ISP, pin-to-pin delays as fast as 5 ns, and counter speeds of up to 175.4 MHz. MAX 7000S devices in the -5, -6,-7, and -10 speed grades as well as the EPM7128SLC84-10 in -5, -6, -7, -10P, and -12P speed grades comply with the PCI Special Interest Group (PCI SIG) PCI Local Bus Specification, Revision 2.2.
Parametrics
EPM7128SLC84-10 absolute maximum ratings: (1)TSTG Storage temperature No bias: –65 to 150 ℃; (2)TAMB Ambient temperature Under bias: –65 to 135 ℃; (3)TJ Junction temperature Ceramic packages, under bias: 150 ℃; (4)PQFP and RQFP packages, under bias: 135 ℃; (5)VCC Supply voltage With respect to ground: –2.0 to 7.0 V; (6)VI DC input voltage: –2.0 to 7.0 V; (7)IOUT DC output current, per pin: –25 to 25 mA.
Features
EPM7128SLC84-10 features: (1)High-performance, EEPROM-based programmable logic devices (PLDs) based on second-generation MAXR architecture; (2)5.0-V in-system programmability (ISP) through the built-in IEEE Std. 1149.1 Joint Test Action Group (JTAG) interface available in MAX 7000S devices. ISP circuitry compatible with IEEE Std. 1532; (3)Includes 5.0-V MAX 7000 devices and 5.0-V ISP-based MAX 7000S devices; (4)Built-in JTAG boundary-scan test (BST) circuitry in MAX 7000S devices with 128 or more macrocells; (5)Complete EPLD family with logic densities ranging from 600 to 5,000 usable gates (see Tables 1 and 2); (6)5-ns pin-to-pin logic delays with up to 175.4-MHz counter frequencies (including interconnect); (7)PCI-compliant devices available.

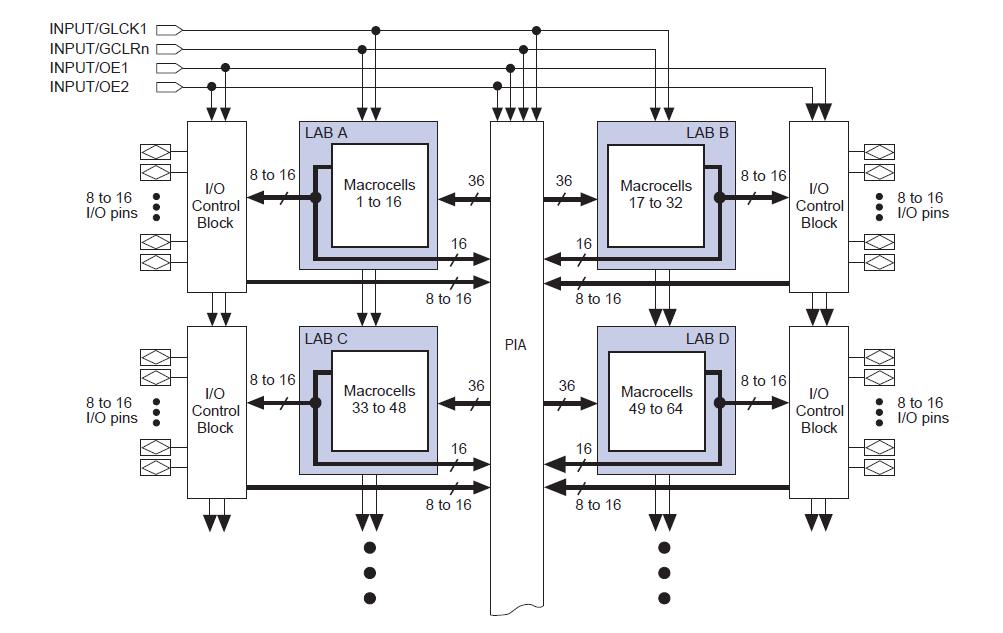

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 EPM7128SLC84-10 |
|
IC MAX 7000 CPLD 128 84-PLCC |
Data Sheet |
|
|
||||||
|
EPM7128SLC84-10N |
|
IC MAX 7000 CPLD 128 84-PLCC |
Data Sheet |
|
|
||||||
