Product Summary
The ICL7109CQH is a monolithic 12 bit A/D converter designed for easy interface with microprocessors and UARTs. The 12 bit binary plus polarity and over-range outputs can be directly interfaced to a microprocessor bus. In this mode the ICL7109CQH is controlled by the microprocessor through the chip select and two byte enable inputs. For remote data logging applications the ICL7109CQH outputs are easily converted to a UART handshake mode, working with industry standard UARTs to provide serial data transmission. The ICL7109CQH is used in a wide range of data acquisition and control applications.
Parametrics
ICL7109CQH absolute maximum ratings: (1)positive supply voltage (GND to V+): +6.2 V; (2)negative supply voltage (GND to V-): -9 V; (3)analog input voltage (Lo or Hi): V+ to V-; (4)reference input voltage (Lo or Hi): V+ to V-; (5)digital input voltage (pins 2-27): GND-0.3 V ≤ VIN ≤ V++0.3V; (6)power dissipation: cerdip package: 1 W @ +85℃, plastic package: 500 mW @ +70℃, plastic chip carrier (quad): 400 mW @ +70℃; (7)operating tempeature: -55 to +125℃; (8)storage tempeature: -65 to +160℃.
Features
ICL7109CQH features: (1)improved 2nd source; (2)zero integrator phase for fast overload recovery; (3)hysteresis and "crosstalk" eliminated; (4)enhanced bus driving capaility; (5)byte organized three-state outputs; (6)UART handshake mode for serial interfacing; (7)true differential input and reference; (8)up to 30 conversions per second; (9)significantly improved ESD protection; (10)monolithic, low power CMOS design.

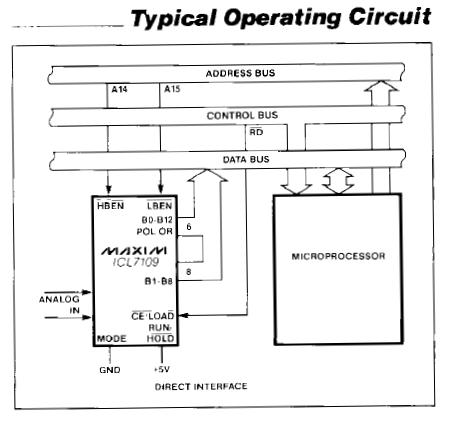

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ICL7109CQH+D |
Maxim Integrated Products |
ADC (A/D Converters) 12-Bit ADC w/3-State Binary Outputs |
Data Sheet |
|
|
|||||||||||||
ICL7109CQH+TD |
Maxim Integrated Products |
ADC (A/D Converters) 12-Bit ADC w/3-State Binary Outputs |
Data Sheet |
|
|
|||||||||||||
ICL7109CQH-D |
Maxim Integrated Products |
ADC (A/D Converters) |
Data Sheet |
Negotiable |
|
|||||||||||||
ICL7109CQH-TD |
Maxim Integrated Products |
ADC (A/D Converters) |
Data Sheet |
Negotiable |
|
