Product Summary

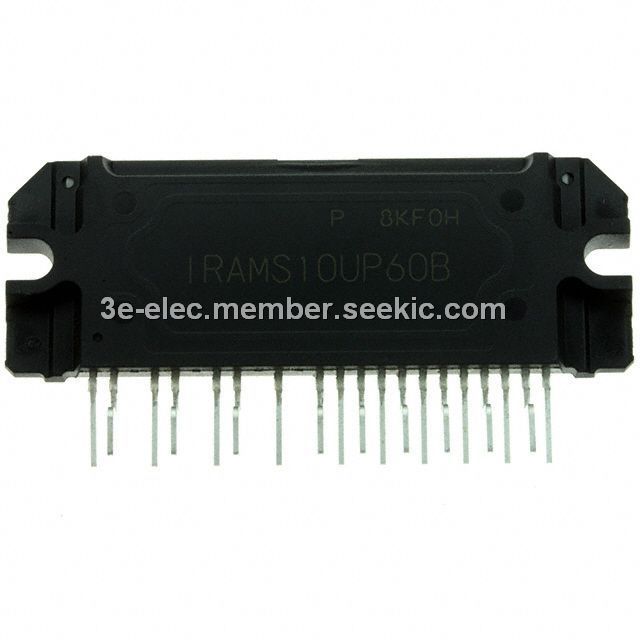

The IRAMS10UP60B-4 is an Integrated Power Module developed and optimized for electronic motor control in appliance applications such as washing machines and refrigerators. Plug N Drive technology offers an extremely compact, high performance AC motor-driver in a single isolated package for a very simple design. The internal shunt of IRAMS10UP60B-4 is also included and offers easy current feedback and overcurrent monitor for precise and safe operation.

Parametrics

IRAMS10UP60B-4 absolute maximum ratings: (1)Maximum IGBT Blocking Voltage:600V; (2)Positive Bus Input Voltage:450V; (3)RMS Phase Current TC=25℃:10A; (4)RMS Phase Current TC=100℃:5A; (5)Maximum Peak Phase Current (tp<100ms):15A; (6)Maximum PWM Carrier Frequency:20 kHz; (7)Maximum Power dissipation per Phase:20 W; (8)Isolation Voltage (1min):2000 VRMS; (9)Operating Junction temperature Range:-40℃ to +150℃; (10)Operating Junction temperature Range:-40℃ to +150℃; (11)Mounting torque Range (M3 screw):0.8 to 1.0 Nm.

Features

IRAMS10UP60B-4 features: (1)Internal Shunt Resistor; (2)Integrated Gate Drivers and Bootstrap Diodes; (3)Temperature Monitor; (4)Fully Isolated Package; (5)Low VCE(on) Non Punch Through IGBT Technology; (6)Undervoltage lockout for all channels; (7)Matched propagation delay for all channels; (8)Schmitt-triggered input logic; (9)Cross-conduction prevention logic; (10)Lower di/dt gate driver for better noise immunity; (11)Motor Power range 0.4~0.75kW / 85~253 Vac; (12)Isolation 2000VRMS /1min.

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
IRAMS10UP60B-4
IRAMS10UP60B-4

International Rectifier

Motor / Motion / Ignition Controllers & Drivers

Data Sheet

0-53: $10.55
53-100: $9.25
100-250: $8.92
250-500: $8.62
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
IRAM109-015SD
IRAM109-015SD


IC HYBRID H-BRIDGE 1A 500V SIP-S

Data Sheet

Negotiable
IRAM136-0461G
IRAM136-0461G

Other


Data Sheet

Negotiable
IRAM136-0760A
IRAM136-0760A

International Rectifier

Motor / Motion / Ignition Controllers & Drivers

Data Sheet

0-72: $9.64
72-100: $8.44
100-250: $8.14
250-500: $7.87
IRAM136-0760A2
IRAM136-0760A2

International Rectifier

Motor / Motion / Ignition Controllers & Drivers

Data Sheet

0-72: $10.10
72-100: $8.84
100-250: $8.53
250-500: $8.25
IRAM136-1060A
IRAM136-1060A

International Rectifier

Motor / Motion / Ignition Controllers & Drivers

Data Sheet

0-72: $10.55
72-100: $9.25
100-250: $8.92
250-500: $8.62
IRAM136-1060B
IRAM136-1060B

International Rectifier

Motor / Motion / Ignition Controllers & Drivers

Data Sheet

0-72: $11.02
72-100: $9.65
100-250: $9.31
250-500: $9.00
