Product Summary

The IRFB4115PBF is a HEXFET Power MOSFET. It is designed for High Efficiency Synchronous Rectification in SMPS, Uninterruptible Power Supply, High Speed Power Switching, Hard Switched and High Frequency Circuits.

Parametrics

IRFB4115PBF absolute maximum ratings: (1)Continuous Drain Current, VGS @ 10V: 104 A; (2)Continuous Drain Current, VGS @ 10V: 74 A; (3)Pulsed Drain Current: 420 A; (4)Maximum Power Dissipation: 380 W; (5)Linear Derating Factor: 2.5 W/℃; (6)Gate-to-Source Voltage: 20 V; (7)Peak Diode Recovery: 18 V/ns; (8)Operating Junction and Storage Temperature Range: -55 to +175 ℃; (9)Soldering Temperature, for 10 seconds (1.6mm from case): 300 ℃; (10)Mounting torque, 6-32 or M3 screw: 10lb·in.

Features

IRFB4115PBF features: (1)Improved Gate, Avalanche and Dynamic dV/dt Ruggedness; (2)Fully Characterized Capacitance and Avalanche SOA; (3)Enhanced body diode dV/dt and dI/dt Capability; (4)Lead-Free.

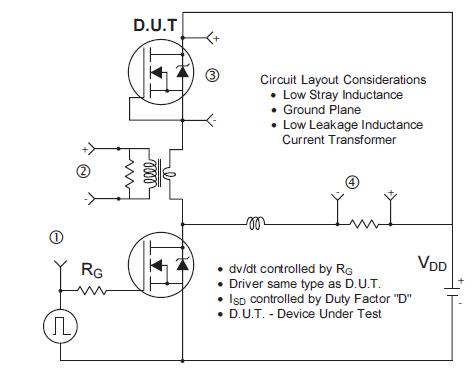

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

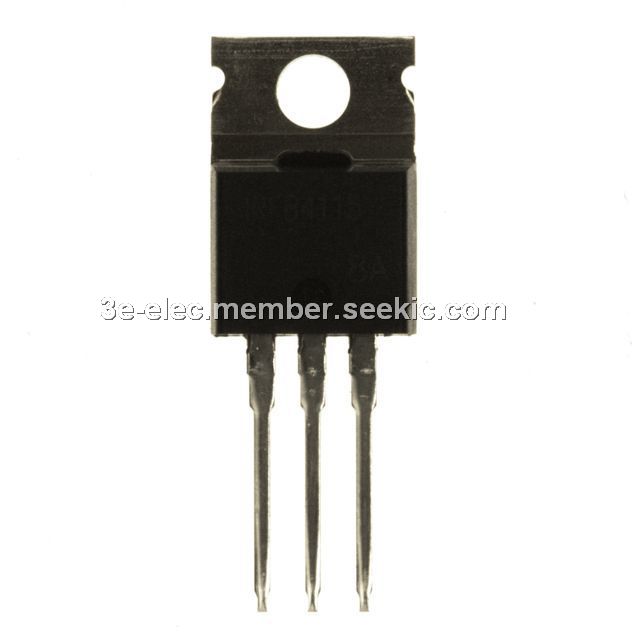

IRFB4115PBF
IRFB4115PBF
International Rectifier
MOSFET MOSFT 150V 104A 11mOhm 77nC Qg
Data Sheet
0-1: $2.34
1-25: $1.60
25-100: $1.19
100-250: $1.14
