Product Summary
The KU80386EXTC25 is a highly integrated, 32-bit, fully static processor optimized for embedded control applications. With a 16-bit external data bus, a 26-bit external address bus, and the System Management Mode (SMM) of Intel, the KU80386EXTC25 microprocessor brings the vast software library of Intel386 architecture to embedded systems. It provides the performance benefits
of 32-bit programming with the cost savings associated with 16-bit hardware systems.
Parametrics
KU80386EXTC25 absolute maximum ratings: (1)Storage Temperature: –65℃ to +150℃; (2)Supply Voltage with Respect to VSS: –0.5 V to 6.5 V; (3)Voltage on Other Pins: –0.5 V to VCC + 0.5 V; (4)VCC (Digital Supply Voltage): 4.5 V to 5.5 V; (5)TCASE (Case Temperature Under Bias)TCASE(MIN): -40℃; (6)FOSC (Operating Frequency): 0 MHz to 33 MHz.
Features
KU80386EXTC25 features: (1)Virtual 8086 Mode Allows Execution of 8086 Software in a Protected and Paged System; (2)Large Uniform Address Space: 64 Megabyte Physical; 64 Terabyte Virtual; 4 Gigabyte Maximum Segment Size; (3)On-chip Debugging Support Including Breakpoint Registers; (4)Complete System Development Support; (5)High Speed CHMOS Technology; (6)Two Package Types: 132-pin Plastic Quad Flatpack; 144-pin Thin Quad Flatpack.

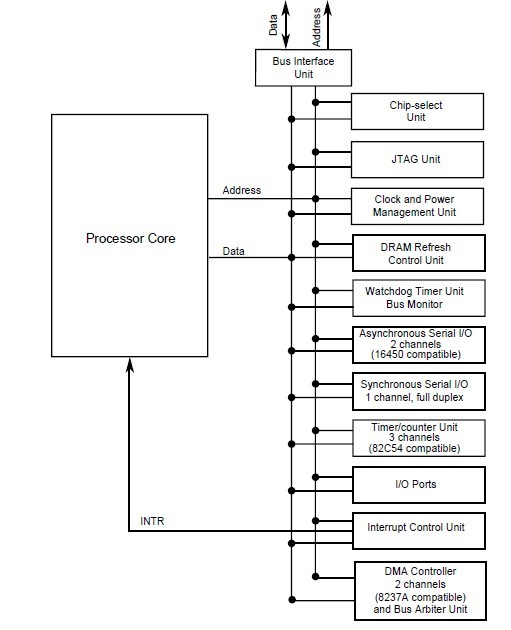

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
KU80386EXTC25 |
IC INT PROC 5V 25MHZ 132QFP |
Data Sheet |
Negotiable |
|
||||||||||||||||
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||||
KU80386EXTB25 |
IC INT PROC 3.3V 25MHZ 132QFP |
Data Sheet |
Negotiable |
|
||||||||||||||||
KU80386EXTC25 |
IC INT PROC 5V 25MHZ 132QFP |
Data Sheet |
Negotiable |
|
||||||||||||||||
KU80386EXTC33 |
IC INT PROC 5V 33MHZ 132QFP |
Data Sheet |
Negotiable |
|
||||||||||||||||
KU80386SXTA25 |
IC MPU 32-BIT 5V 25MHZ 100-QFP |
Data Sheet |
|
|
||||||||||||||||
KU80386SXTA33 |
IC MPU 32-BIT 5V 33MHZ 100-QFP |
Data Sheet |
|
|
||||||||||||||||
KU80386SXTA40 |
IC MPU 32-BIT 5V 40MHZ 100-QFP |
Data Sheet |
|
|
