Product Summary

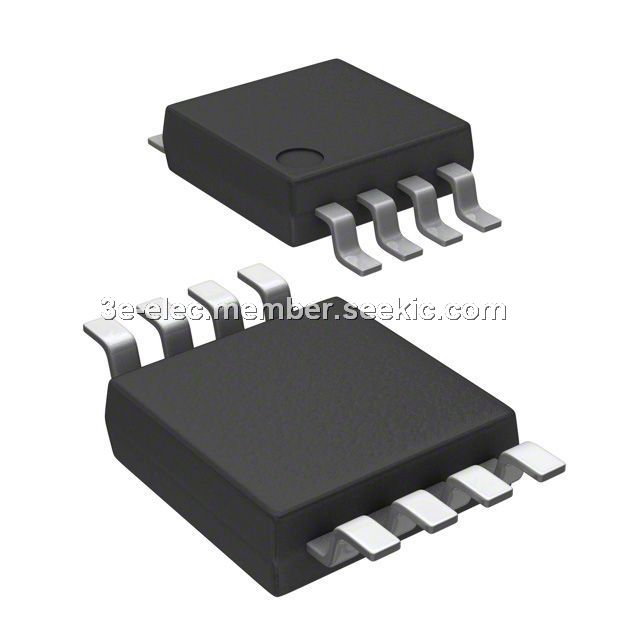

The LM2936MX-5.0 is a ultra-low quiescent current regulator. It features low dropout voltage and low current in the standby mode. With less than 15 μA quiescent current at a 100 μA load, the LM2936MX-5.0 is ideally suited for automotive and other battery operated systems. The LM2936MX-5.0 retains all of the features that are common to low dropout regulators including a low dropout PNP pass device, short circuit protection, reverse battery protection, and thermal shutdown. The LM2936MX-5.0 has a 40V maximum operating voltage limit, a -40℃ to +125℃ operating temperature range, and ±3% output voltage tolerance over the entire output current, input voltage, and temperature range. The LM2936MX-5.0 is available in a TO8-Lead SOIC package.
Parametrics
LM2936MX-5.0 absolute maximum ratings: (1)Input Voltage (Survival): +60V, -50V; (2)ESD Susceptibility: 2000V; (3)Power Dissipation: Internally limited; (4)Junction Temperature (TJmax): 150℃; (5)Storage Temperature Range: -65℃ to +150℃; (6)Lead Temperature (Soldering, 10 sec.): 260℃; (7)Operating Temperature Range: -40 to +125℃.
Features
LM2936MX-5.0 features: (1)Ultra low quiescent current (IQ ≤ 15 μA for IO = 100 μA); (2)Fixed 3.0V, 3.3V or 5.0V with 50 mA output; (3)±2% Initial output tolerance; (4)±3% Output tolerance over line, load, and temperature; (5)Dropout voltage typically 200 mV @ IO = 50 mA; (6)Reverse battery protection; (7)-50V reverse transient protection; (8)Internal short circuit current limit; (9)Internal thermal shutdown protection; (10)40V operating voltage limit; (11)60V operating voltage limit for LM2936HV; (12)Shutdown Pin available with LM2936BM package.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LM2936MX-5.0 |
National Semiconductor (TI) |
Low Dropout (LDO) Regulators |
Data Sheet |
|
|
||||||||||||
 |
LM2936MX-5.0/NOPB |
National Semiconductor (TI) |
Low Dropout (LDO) Regulators ULTRA-LOW QUIES CRNT LDO VLTG REG |
Data Sheet |
|
|
||||||||||||
