Product Summary

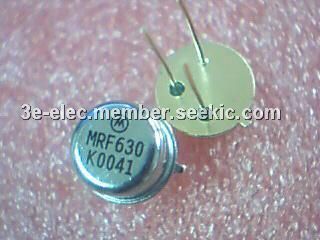

The MRF630 is a NPN silicon RF power transistor. The ASI MRF630 is Designed for UHF large signal, FM Land Mobile Applications up to 512 MHz.
Parametrics
MRF630 maximum ratings: (1)IC: 1.0 A; (2)VCEO: 16 V; (3)VCES: 36 V; (4)VEBO: 4.0 V; (5)PDISS: 8.75 W @ TC = 25 ℃; (6)TJ: -65 ℃ to +200 ℃; (7)TSTG: -65 ℃ to +200 ℃; (8)θJC: 20 ℃/W.
Features
MRF630 fearures: (1)Grounded Emitter; (2)PG = 9.5 dB at 3.0 W/470 MHz; (3)Omnigol TM Metalization System.

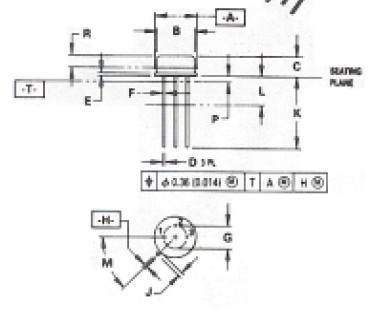

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 MRF630 |
Other |
|
Data Sheet |
Negotiable |
|
||||
