Product Summary

The PCA82C251T/YM,118 is a CAN transceiver for 24 V systems. The PCA82C251T/YM,118 is the interface between a CAN protocol controller and the physical bus. The device provides differential transmit capability to the bus and differential receive capability to the CAN controller.

Parametrics

PCA82C251T/YM,118 absolute maximum ratings: (1)supply voltage:4.5V to 5.5V; (2)supply current Standby mode:275μA; (3)maximum transmission speed non-return-to-zero:1MBd; (4)CANH, CANL input/output voltage:-36V to +36V; (5)differential bus voltage:1.5V to 3.0V; (6)propagation delay High-speed mode:50 ns; (7)ambient temperature:-40℃ to +125℃.

Features

PCA82C251T/YM,118 features: (1)Fully compatible with the “ISO 11898-24 V” standard; (2)Slope control to reduce Radio Frequency Interference (RFI); (3)Thermally protected; (4)Short-circuit proof to battery and ground in 24 V powered systems; (5)Low-current Standby mode; (6)An unpowered node does not disturb the bus lines; (7)At least 110 nodes can be connected; (8)High speed (up to 1 MBd); (9)High immunity against electromagnetic interference.

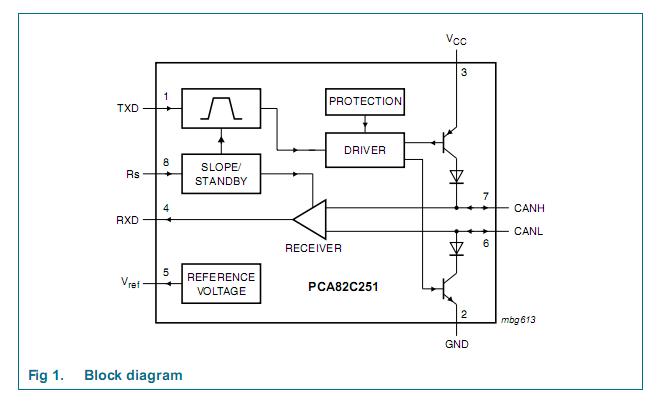

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
PCA82C251T/YM,118
PCA82C251T/YM,118

NXP Semiconductors

Network Controller & Processor ICs CAN Xceive 275uA 5V

Data Sheet

0-1: $1.01
1-25: $0.90
25-100: $0.81
100-250: $0.72
