Product Summary

The TPS76801QPWP is a fast-transient-response 1-A low-dropout voltage regulator. It is designed to have a fast transient response and be stable with 10μF low ESR capacitors. This combination provides high performance at a reasonable cost. The TPS76801QPWP is offered in 1.5-V, 1.8-V, 2.5-V, 2.7-V, 2.8-V, 3.0-V, 3.3-V, and 5.0-V fixed-voltage versions and in an adjustable version (programmable over the range of 1.2 V to 5.5 V). Output voltage tolerance is specified as a maximum of 2% over line, load, and temperature ranges. The TPS76801QPWP is available in 8-pin SOIC and 20-pin PWP packages.

Parametrics

TPS76801QPWP absolute maximum ratings: (1)Input voltage range, VI: -0.3 V to 13.5 V; (2)Voltage range at EN: -0.3 V to VI + 0.3 V; (3)Maximum PG voltage: 16.5 V; (4)Peak output current: Internally limited; (5)Output voltage, VO (OUT, FB): 7 V; (6)Operating junction temperature range, TJ: -40 to 125℃; (7)Storage temperature range, Tstg: -65 to 150℃; (8)ESD rating, HBM: 2 kV.

Features

TPS76801QPWP features: (1)1 A Low-Dropout Voltage Regulator; (2)Available in 1.5-V, 1.8-V, 2.5-V, 2.7-V, 2.8-V, 3.0-V, 3.3-V, 5.0-V Fixed Output and Adjustable Versions; (3)Ultralow 85 μA Typical Quiescent Current; (4)Fast Transient Response; (5)2% Tolerance Over Specified Conditions for Fixed-Output Versions; (6)Open Drain Power Good (See TPS767xx for Power-On Reset With 200-ms Delay Option); (7)8-Pin SOIC and 20-Pin TSSOP (PWP) Package; (8)Thermal Shutdown Protection.

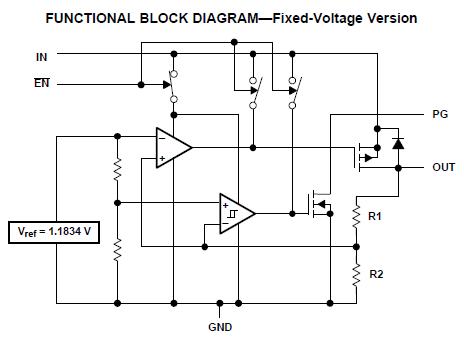

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TPS76801QPWP
TPS76801QPWP
Texas Instruments
Low Dropout (LDO) Regulators Micropower LDO Reg
Data Sheet
0-1: $1.60
1-25: $1.46
25-100: $1.17
100-250: $1.03
TPS76801QPWPG4
TPS76801QPWPG4
Texas Instruments
Low Dropout (LDO) Regulators Micropower LDO Reg
Data Sheet
0-1: $1.60
1-25: $1.35
25-100: $1.17
100-250: $1.03
TPS76801QPWPREP
TPS76801QPWPREP
Texas Instruments
Low Dropout (LDO) Regulators Mil Enh Fast-Trans Resp 1A LDO
Data Sheet
0-1355: $2.15
1355-2000: $2.08
TPS76801QPWPRG4
TPS76801QPWPRG4
Texas Instruments
Low Dropout (LDO) Regulators Micropower LDO Reg
Data Sheet
0-1290: $0.76
1290-2000: $0.72
2000-5000: $0.69
5000-10000: $0.67
TPS76801QPWPR
TPS76801QPWPR
Texas Instruments
Low Dropout (LDO) Regulators Micropower LDO Reg
Data Sheet
0-1290: $0.76
1290-2000: $0.72
2000-5000: $0.69
5000-10000: $0.67
TPS76801QPWPRG4Q1
TPS76801QPWPRG4Q1
Texas Instruments
Low Dropout (LDO) Regulators Auto Cat Fast Trans Response
Data Sheet
0-1420: $0.80
1420-2000: $0.79
2000-5000: $0.78
TPS76801QPWPRQ1
TPS76801QPWPRQ1
Texas Instruments
Low Dropout (LDO) Regulators Auto Cat Fast-Trans- Response
Data Sheet
0-1: $1.58
1-25: $1.26
25-100: $1.01
100-250: $0.84
