Product Summary

The VI-250-CV Family with over 8 million shipped, is Vicor’s first generation of "zero-current-switching" component-level DC-DC converters.

Parametrics

VI-250-CV absolute maximum ratings: (1)Input to output: 3,000 VRMS Baseplate earthed; (2)Output to baseplate: 500 VRMS; (3)Input to baseplate: 1,500 VRMS; (4)Efficiency: 80-90%; (5)Baseplate to sink: 0.2 ℃/Watt With Vicor P/N 01777; (6)Thermal shutdown (Drivers only): 90 ℃ min, 95 ℃ typ and 105 ℃ max at Cool and recycle power to restart; (7)Weight: 6.0 (170) Ounces (Grams).

Features

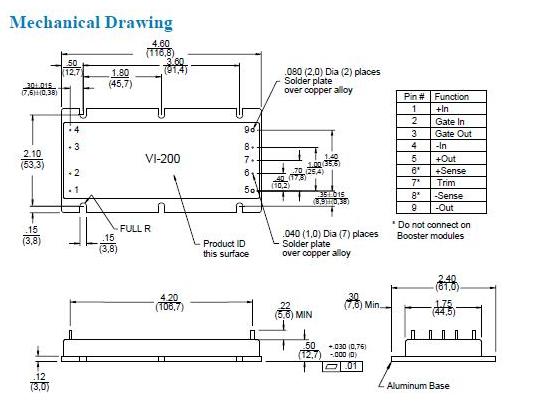

VI-250-CV features: (1)Up to 50W/Cubic Inch; (2)UL, CSA, TüV, VDE, BABT, AUSTEL; (3)Up to 90% Efficiency; (4)Size: 4.6" x 2.4" x 0.5" (116,8 x 61,0 x 12,7); (5)Remote Sense and Current Limit; (6)OVP, Thermal Shutdown; (7)Logic Disable; (8)Wide Range Output Adjust; (9)Compatible Power Booster Modules; (10)ZCS Power Architecture; (11)Low Noise FM Control; (12)CE Marked.

Diagrams

VI-250-CV block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
VI-250-CV
VI-250-CV


CONVERTER MOD DC/DC 5V 150W

Data Sheet

0-1: $141.00
VI-250-CV-B1
VI-250-CV-B1


CONVERTER MOD DC/DC 5V 150W

Data Sheet

0-1: $160.20
VI-250-CV-F1
VI-250-CV-F1


CONVERTER MOD DC/DC 5V 150W

Data Sheet

0-1: $150.00
VI-250-CV-F2
VI-250-CV-F2


CONVERTER MOD DC/DC 5V 150W

Data Sheet

0-1: $150.00
VI-250-CV-F3
VI-250-CV-F3


CONVERTER MOD DC/DC 5V 150W

Data Sheet

0-1: $150.00
VI-250-CV-F4
VI-250-CV-F4


CONVERTER MOD DC/DC 5V 150W

Data Sheet

0-1: $150.00
VI-250-CV-S
VI-250-CV-S


CONVERTER MOD DC/DC 5V 150W

Data Sheet

0-1: $147.00
