Product Summary

The DS620U+ is a digital thermometer. It provides low-voltage (1.7V ≤ VDD ≤ 3.5V) temperature measurements with ±0.5℃ accuracy from 0℃ to +70℃ and an operating temperature range of -55℃ to +125℃. The DS620U+ communicates over a 2-wire digital interface. For distributed-sensing applications, it is multidroppable with three address pins that allow up to eight DS620s to operate on a single bus.

Parametrics

DS620U+ absolute maximum ratings: (1)Voltage Range on Any Pin, Relative to Ground: -0.5V to +4.5V; (2)Operating Temperature Range: -55 to +125℃; (3)Storage Temperature Range: -55 to +125℃; (4)ESD rating on all pins: 4KV HBM.

Features

DS620U+ features: (1)Low-Voltage Operation: 1.7V to 3.5V; (2)±0.5℃ Accuracy from 0℃ to +70℃; (3)Operating Temperature Range: -55℃ to +125℃ (-67℃ to +257℃); (4)Temperature Measurements Require No External Components; (5)Resolution is User-Selectable to 10-, 11-, 12-, or 13-Bits; (6)Multidroppable; (7)Fast (200ms max) Temperature-to-Digital Conversion Time; (8)Thermostatic Settings are User-Definable and Nonvolatile; (9)Standalone Thermostat Capability; (10)Data is Read/Written Through a 2-Wire Serial Interface; (11)Package: 8-Pin μOP.

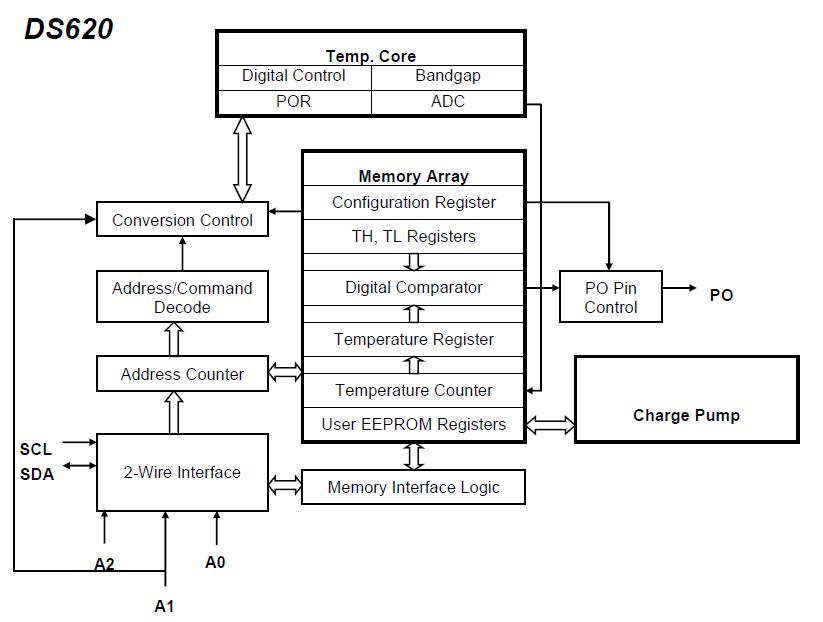

Diagrams

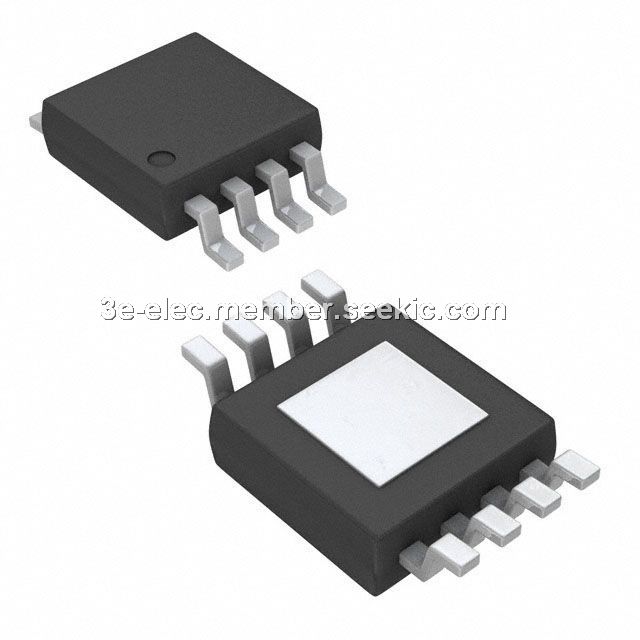

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
DS620U+
DS620U+
Maxim Integrated Products
Board Mount Temperature Sensors Low-Voltage .5+/-C
Data Sheet
0-1: $2.83
1-25: $1.90
25-50: $1.37
50-100: $1.36
DS620U+T&R
DS620U+T&R
Maxim Integrated Products
Board Mount Temperature Sensors Low-Voltage .5+/-C
Data Sheet
0-2500: $1.14
2500-3000: $1.14
