Product Summary

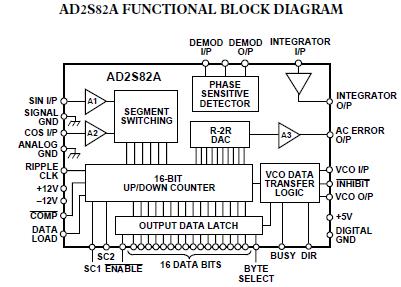

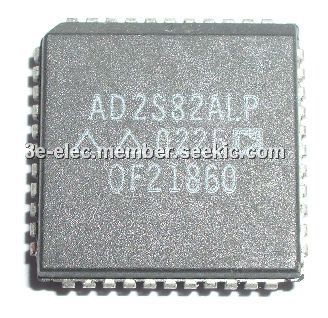

The AD2S82ALP is a monolithic 10-, 12-, 14- or 16-bit tracking resolver-to-digital converter contained in a 44-lead J leaded PLCC package. Two extra functions are provided in the new surface mount package–COMPLEMENT and VCO output. The AD2S82ALP allows users to select the resolution to be 10, 12, 14 or 16 bits and to track resolver signals rotating at up to 1040 revs per second (62,400 rpm) when set to 10-bit resolution. The AD2S82ALP converts resolver format input signals into a parallel natural binary digital word using a ratiometric tracking conversion method. This ensures high-noise immunity and tolerance of lead length when the converter is remote from the resolver.

Parametrics

AD2S82ALP absolute maximum ratings: (1)+VS: +14 V dc; (2)–VS: –14 V dc; (3)+VL: +VS; (4)Reference: +14 V to –VS; (5)SIN: +14 V to –VS; (6)COS: +14 V to –VS; (7)Any Logical Input: –0.4 V dc to +VL dc; (8)Demodulator Input: +14 V to –VS; (9)Integrator Input: +14 V to –VS; (10)VCO Input: +14 V to –VS; (11)Power Dissipation: 860 mW; (12)Operating Temperature, Commercial (JD): 0 to +70℃; Industrial (HP, JP, KP, LP): –40 to +85℃; (13)Storage Temperature (All Grades): –65 to +150℃; (14)Lead Temperature (Soldering, 10 sec): +300℃.

Features

AD2S82ALP features: (1)Monolithic (BiMOS ll) Tracking R/D Converter Ratiometric Conversion; (2)Low Power Consumption: 300 mW Typ; (3)Dynamic Performance Set by User; (4)Velocity Output; (5)ESD Class 2 Protection (2,000 V Min); (6)44-Lead PLCC Package; (7)10-, 12-, 14- and 16-Bit Resolution Set by User; (8)High Max Tracking Rate 1040 RPS (10 Bits); (9)VCO Output (Inter LSB Output); (10)Data Complement Facility; (11)Industrial Temperature Range.
