Product Summary
The DAC80-CBI-V monolithic digital-to-analog converter is pin-for pin equivalent to the industry standard DAC80 first introduced by Burr-Brown. The single-chip design of DAC80-CBI-V includes the output amplifier and provides a highly stable reference capable of supplying up to 2.5mA to an external load without degradation of D/A performance.
Parametrics
DAC80-CBI-V absolute maximum ratings: (1)+VCC to Common: 0V to +18V; (2)–VCC to Common: 0V to –18; (3)Digital Data Inputs to Common: –1V to +18V; (4)Reference Output to Common: ±VCC; (5)Reference Input to Common: ±VCC; (6)Bipolar Offset to Common: ±VCC; (7)10V Range R to Common: ±VCC; (8)20V Range R to Common: ±VCC; (9)External Voltage to DAC Output: –5V to +5V; (10)Lead Temperature (soldering, 10s): +300℃; (11)Max Junction Temperature: 165℃; (12)Thermal Resistance, qJA: Plastic DIP: 100℃/W, Ceramic DIP: 65℃/W.
Features
DAC80-CBI-V features: (1)industry standard pinout; (2)full ±10V swing with vcc = ±12VDC; (3)digital inputs are ttl- and cmos-compatible; (4)guaranteed specifications with ±12V and ±15V supplies; (5)±1/2LSB maximum nonlinearity: 0℃ to +70℃; (6)settling time: 4ms max to ±0.01% of Full Scale; (7)guaranteed monotonicity: 0℃ to +70℃; (8)two package options: Hermetic sidebrazed ceramic and low-cost molded plastic.

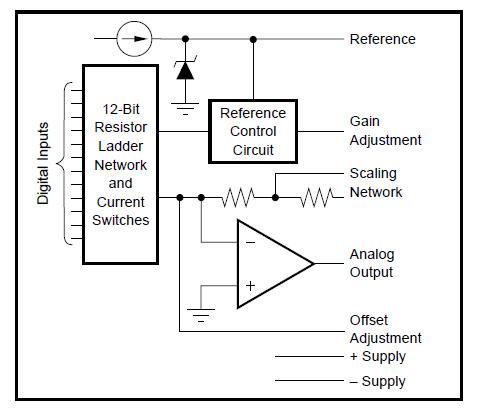

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||
---|---|---|---|---|---|---|---|---|---|---|

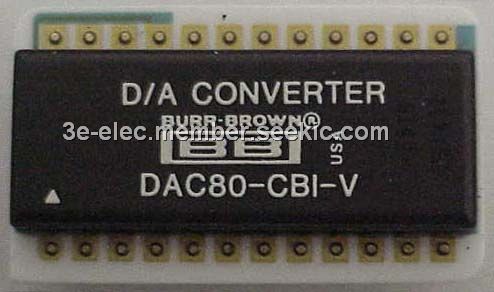

DAC80-CBI-V |
Texas Instruments |
IC 12-BIT V-OUT D/A 24-DIP |
Data Sheet |
Negotiable |
|
|||||
DAC80-CBI-V-BI |
Texas Instruments |
IC 12-BIT V-OUT D/A 24-DIP |
Data Sheet |
Negotiable |
|
