Product Summary

The Altera EP1K30TC144-3 device is a Programmable Logic Device. It provides a die-efficient, low-cost architecture by combining look-up table (LUT) architecture with EABs. LUT-based logic provides optimized performance and efficiency for data-path, register intensive, mathematical, or digital signal processing (DSP) designs, while EABs implement RAM, ROM, dual-port RAM, or first-in first-out (FIFO) functions. These elements make EP1K30TC144-3 suitable for complex logic functions and memory functions such as digital signal processing, wide data-path manipulation, data transformation and microcontrollers, as required in high-performance communications applications. Based on reconfigurable CMOS SRAM elements, the EP1K30TC144-3 architecture incorporates all features necessary to implement common gate array megafunctions, along with a high pin count to enable an effective interface with system components.

Parametrics

EP1K30TC144-3 absolute maximum ratings: (1)Supply voltage: –0.5 to 3.6 V With respect to ground; (2)DC input voltage: –2.0 to 5.75 V; (3)DC output current, per pin: –25 to 25 mA; (4)Storage temperature No bias: –65 to 150 ℃; (5)Ambient temperature Under bias: –65 to 135 ℃; (6)Junction temperature PQFP, TQFP, and BGA packages, under; (7)bias: 135 ℃.

Features

EP1K30TC144-3 features: (1)Programmable logic devices (PLDs), providing low cost system-on-a-programmable-chip (SOPC) integration in a single device: Enhanced embedded array for implementing megafunctions such as efficient memory and specialized logic functions, Dual-port capability with up to 16-bit width per embedded array block (EAB), Logic array for general logic functions; (2)High density: 10,000 to 100,000 typical gates, Up to 49,152 RAM bits (4,096 bits per EAB, all of which can be used without reducing logic capacity); (3)Cost-efficient programmable architecture for high-volume applications: Cost-optimized process, Low cost solution for high-performance communications applications.

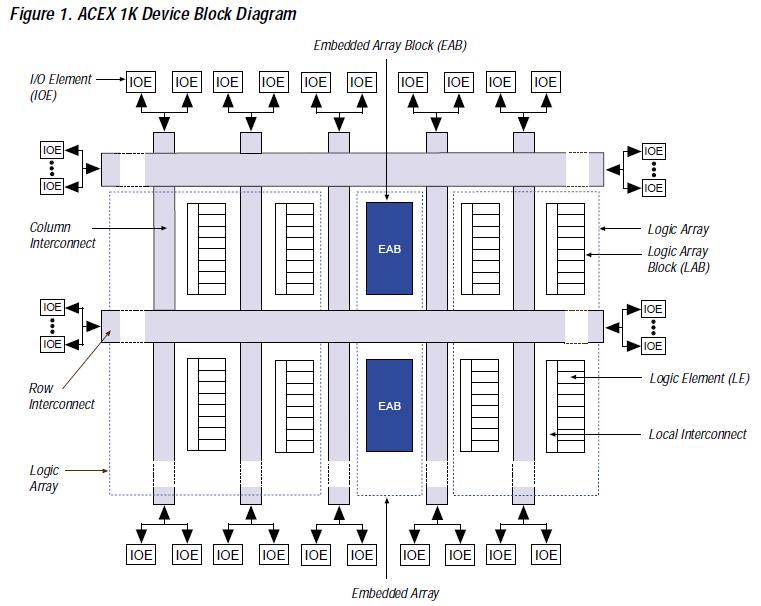

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
EP1K30TC144-3
EP1K30TC144-3


IC ACEX 1K FPGA 30K 144-TQFP

Data Sheet

0-1: $10.44
EP1K30TC144-3N
EP1K30TC144-3N


IC ACEX 1K FPGA 30K 144-TQFP

Data Sheet

0-1: $10.44
