Product Summary
The EPC2TI32 is a configuration device for SRAM-based LUT Devices.
Parametrics
EPC2TI32 absolute maximum ratings: (1)On the conditions of with respect to ground, VCC Supply voltage: min=–2.0 V, max=7.0 V; (2)On the conditions of with respect to ground, VI DC input voltage: min=–2.0 V, max=7.0 V; (3)IMAX DC VCC or ground current: max=50 mA; (4)IOUT DC output current, per pin: min=–25mA, max=25 mA; (5)PD Power dissipation: max=250 mW; (6)On the conditions of no bias, TSTG Storage temperature: min=–65℃, max=150 ℃; (7)On the conditions of under bias, TAMB Ambient temperature: min=–65℃,max=135 ℃; (8)On the conditions of under bias, TJ Junction temperature: max=135 ℃.
Features
EPC2TI32 features: (1)Serial device family for configuring APEX II, APEX 20K(including APEX 20K, APEX 20KC, and APEX 20KE), Mercury, ACEX 1K, and FLEX (FLEX 6000, FLEX 10KE, and FLEX 10KA) devices; (2)Easy-to-use 4-pin interface to APEX II, APEX 20K, Mercury, ACEX, and FLEX devices; (3)Low current during configuration and near-zero standby current; (4)5.0-V and 3.3-V operation; (5)Software design support with the Altera Quartus II and MAX+PLUS II development systems for Windows-based PCs as well as Sun SPARCstation, and HP 9000 Series 700/800.

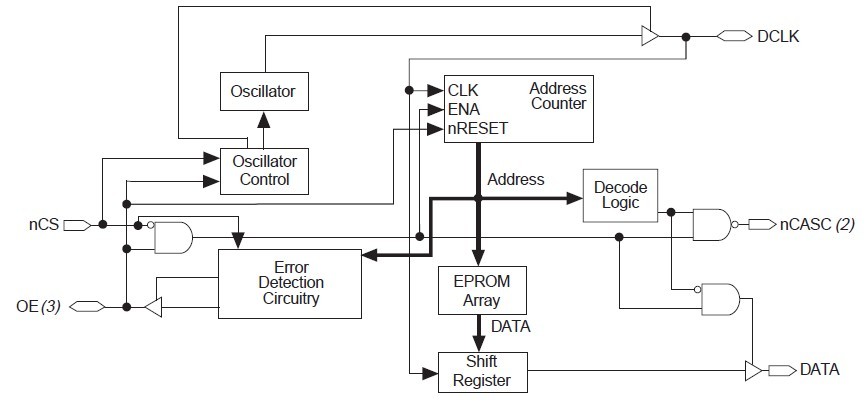

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
EPC2TI32N |
Altera |

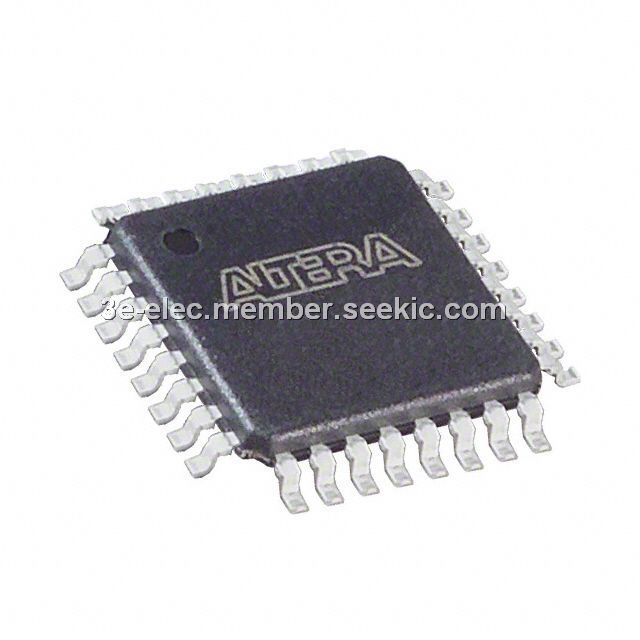

IC CONFIG DEVICE 1.6MBIT 32-TQFP |
Data Sheet |
|
|
|||||||
EPC2TI32 |
Altera |
IC CONFIG DEVICE 1.6MBIT 32-TQFP |
Data Sheet |
|
|
