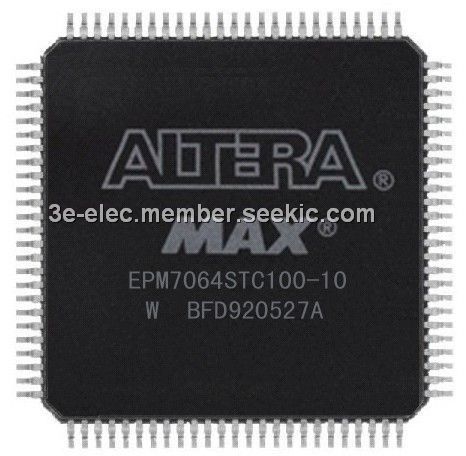

Product Summary

The EPM7064STC100 high-density, high-performance PLD is based on Altera’s second-generation MAX architecture. Fabricated with advanced CMOS technology, the EEPROM-based EPM7064STC100 provides 600 to 5,000 usable gates, ISP, pin-to-pin delays as fast as 5 ns, and counter speeds of up to 175.4 MHz. The EPM7064STC100 device in the -5, -6, -7, and -10 speed grades as well as MAX 7000 and MAX 7000E devices in -5, -6, -7, -10P, and -12P speed grades comply with the PCI Special Interest Group (PCI SIG) PCI Local Bus Specification, Revision 2.2.

Parametrics

EPM7064STC100 absolute maximum ratings: (1)Supply voltage: -2.0 to 7.0 V With respect to ground; (2)DC input voltage: -2.0 to 7.0 V; (3)DC output current, per pin: -25 to 25 mA; (4)Storage temperature No bias: -65 to 150 ℃; (5)Ambient temperature Under bias: -65 to 135 ℃; (6)Junction temperature: Ceramic packages, under bias: 150 ℃, PQFP and RQFP packages, under bias: 135 ℃.

Features

EPM7064STC100 features: (1)Open-drain output option in MAX 7000S devices; (2)Programmable macrocell flipflops with individual clear, preset,; (3)clock, and clock enable controls; (4)Programmable power-saving mode for a reduction of over 50% in each macrocell; (5)Configurable expander product-term distribution, allowing up to 32 product terms per macrocell; (6)44 to 208 pins available in plastic J-lead chip carrier (PLCC), ceramic pin-grid array (PGA), plastic quad flat pack (PQFP), power quad flat pack (RQFP), and 1.0-mm thin quad flat pack (TQFP) packages; (7)Programmable security bit for protection of proprietary designs.

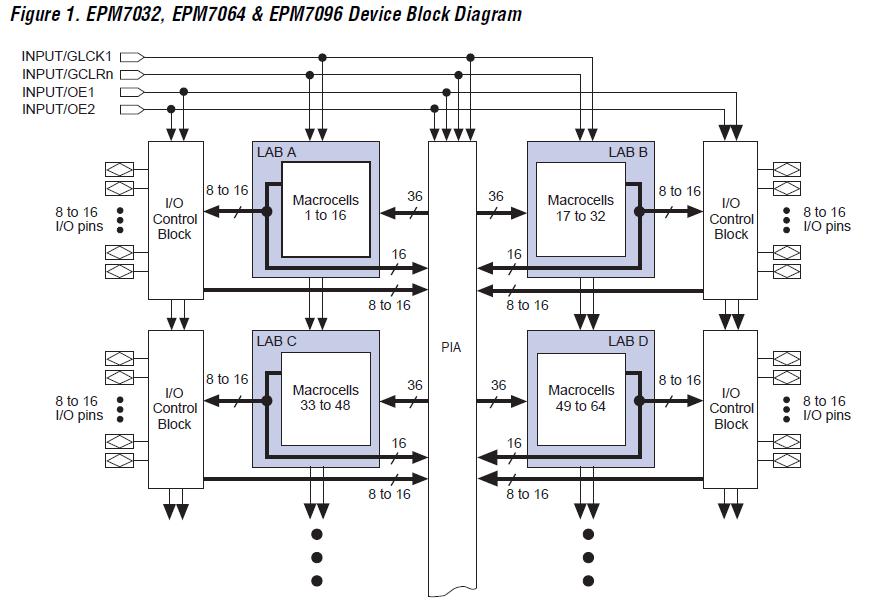

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
EPM7064STC100-10
EPM7064STC100-10


IC MAX 7000 CPLD 64 100-TQFP

Data Sheet

0-1: $6.72
EPM7064STC100-10F
EPM7064STC100-10F


IC MAX 7000 CPLD 64 100-TQFP

Data Sheet

0-270: $5.64
EPM7064STC100-10FN
EPM7064STC100-10FN


IC MAX 7000 CPLD 64 100-TQFP

Data Sheet

0-270: $5.64
EPM7064STC100-10N
EPM7064STC100-10N


IC MAX 7000 CPLD 64 100-TQFP

Data Sheet

0-1: $6.72
EPM7064STC100-5
EPM7064STC100-5


IC MAX 7000 CPLD 64 100-TQFP

Data Sheet

0-270: $29.70
EPM7064STC100-5F
EPM7064STC100-5F


IC MAX 7000 CPLD 64 100-TQFP

Data Sheet

Negotiable
EPM7064STC100-6F
EPM7064STC100-6F


IC MAX 7000 CPLD 64 100-TQFP

Data Sheet

Negotiable
EPM7064STC100-7
EPM7064STC100-7


IC MAX 7000 CPLD 64 100-TQFP

Data Sheet

0-270: $18.60
