M30624FGAFP

Product Summary

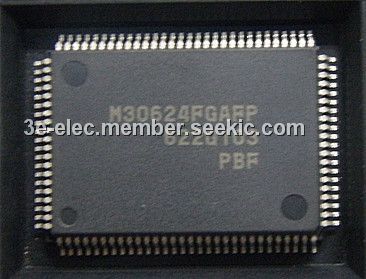

The M30624FGAFP single-chip microcomputer is built using the high-performance silicon gate CMOS process using a M16C/60 Series CPU core and is packaged in a 100-pin plastic molded QFP. The M30624FGAFP operates using sophisticated instructions featuring a high level of instruction efficiency. With 1M bytes of address space, they are capable of executing instructions at high speed. It also features a built-in multiplier and DMAC, making them ideal for controlling office, communications, industrial equipment, and other high-speed processing applications. The M30624FGAFP includes a wide range of products with different internal memory types and sizes and various package types.

Parametrics

M30624FGAFP absolute maximum ratings: (1)Vcc, Supply voltage at VCC=AVCC: -0.3 to 6.5 V; (2)AVcc, Analog supply voltage, -0.3 to 6.5V; (3)VI, Input voltage: -0.3 to Vcc+0.3 V; (4)VO, Output voltage: -0.3 to Vcc+0.3 V; (5)Pd, Power dissipation: 300 mW; (6)Topr, Operating ambient temperature: -20 to 85 / -40 to 85℃; (7)Tstg, Storage temperature, -65 to 150℃.

Features

M30624FGAFP features: (1)Memory capacity: ROM (See Figure 1.1.4. ROM Expansion); RAM 3K to 20K bytes; (2)Shortest instruction execution time: 62.5ns (f(XIN)=16MHZ, VCC=5V); (3)100ns (f(XIN)=10MHZ, VCC=3V, with software one-wait) : Mask ROM, flash memory 5V version; (4)Supply voltage: 4.2V to 5.5V (f(XIN)=16MHZ, without software wait) : Mask ROM, flash memory 5V version; (5)2.7V to 5.5V (f(XIN)=10MHZ with software one-wait) : Mask ROM, flash memory 5V version; (6)Low power consumption: 25.5mW ( f(XIN)=10MHZ, with software one-wait, VCC = 3V); (7)Interrupts: 25 internal and 8 external interrupt sources, 4 software; (8)interrupt sources; 7 levels (including key input interrupt); (9)Multifunction 16-bit timer: 5 output timers + 6 input timers; (10)Serial I/O: 5 channels (3 for UART or clock synchronous, 2 for clock synchronous); (11)DMAC: 2 channels (trigger: 24 sources); (12)A-D converter: 10 bits X 8 channels (Expandable up to 10 channels); (13)D-A converter: 8 bits X 2 channels; (14)CRC calculation circuit: 1 circuit; (15)Watchdog timer: 1 line; (16)Programmable I/O: 87 lines; (17)Input port : 1 line (P85 shared with NMI pin); (18)Memory expansion: Available (to a maximum of 1M bytes); (19)Chip select output: 4 lines; (20)Clock generating circuit: 2 built-in clock generation circuits.

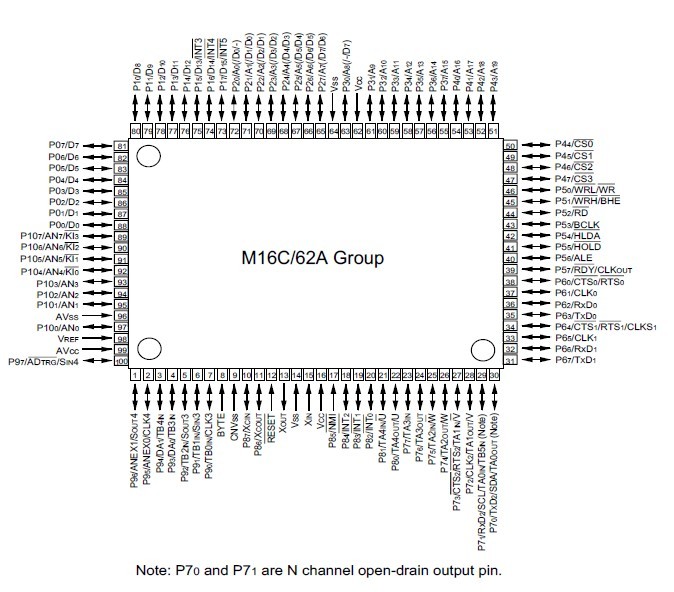

Diagrams
