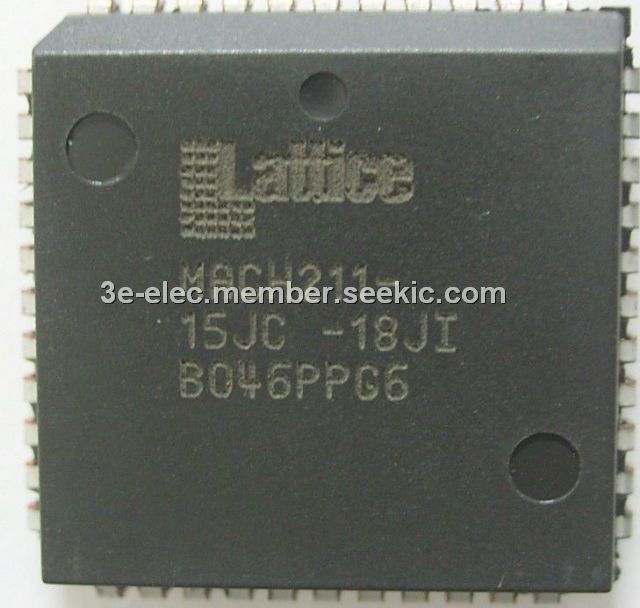

Product Summary
The MACH211-15JC is a high-performance EE CMOS programmable logic. It from Lattice/Vantis offers high-performance, low cost Complex Programmable Logic Device(CPLDs), addressing the growing need for speed in networking, telecommunications and computing. The MACH211-15JC is available in speeds as fast as 5.0ns tPD and in densities ranging from 32 to 128 macrocells. The overall benefits for users include guaranteed high performance for entry-to-mid-level logic needs at a low cost.
Parametrics
MACH211-15JC absolute maxing ratings: (1)Storage Temperature: -65℃ to +150℃; (2)Ambient Temperature With Power Applied: -55℃ to +125℃; (3)Device Junction Temperature: +150℃; (4)Supply Voltage with Respect to Ground: -0.5V to +7.0V; (5)DC Input Voltage: -0. V to VCC +0.5V; (6)DC Output or I/O Pin Voltage: -0.5V to VCC +0.5V; (7)Static Discharge Voltage: 2001V; (8)Latchup Current (TA = -40℃ to +85℃): 200mA.
Features
MACH211-15JC features: (1)High-performance electrically-erasable CMOS PLD families; (2)32 to 128 macrocells; (3)44 to 100 pins in cost-effective PLCC, PQFP and TQFP packages; (4)SpeedLocking – guaranteed fixed timing up to 16 product terms; (5)Commercial 5/5.5/6/7.5/10/12/15-ns tPD and Industrial 7.5/10/12/14/18-ns tPD; (6)JTAG (IEEE 1149.1)-compatible, 5-V in-system programming available; (7)Peripheral component interconnect (PCI) compliant at 5/5.5/6/7.5/10/12 ns; (8)Safe for mixed supply voltage system designs; (9)Bus-Friendly. inputs and I/Os reduce risk of unwanted oscillatory outputs; (10)Programmable power-down mode results in power savings of up to 75%.

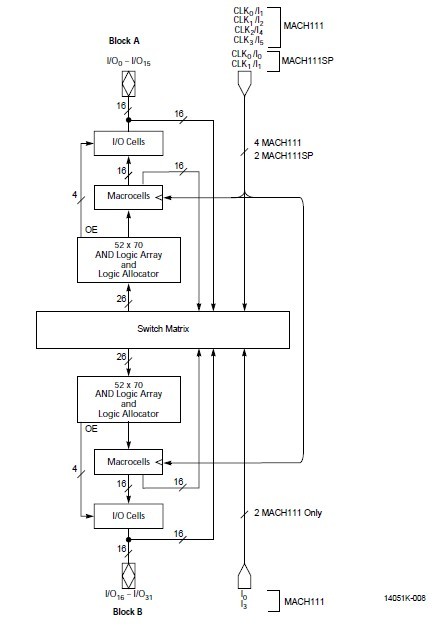

Diagrams
 |
