Product Summary

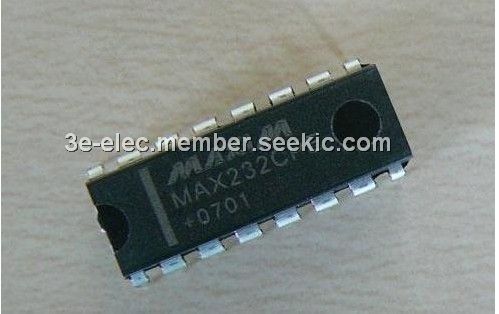

The MAX232CPE is a line driver/receiver. The MAX232CPE is intended for all EIA/TIA-232E and V.28/V.24 communications interfaces, particularly applications where ±12V is not available. These parts are especially useful in battery-powered systems, since their low-power shutdown mode reduces power dissipation to less than 5μW. The applications of the MAX232CPE include Portable Computers, Low-Power Modems, Interface Translation, Battery-Powered RS-232 Systems, Multidrop RS-232 Networks.

Parametrics

MAX232CPE absolute maximum ratings: (1)VCC:-0.3V to +6V; (2)V+ :(VCC - 0.3V) to +14V; (3)V- :+0.3V to -14V; (4)Input Voltages: TIN:-0.3V to (VCC - 0.3V), RIN:±30V,TOUT:±15V; (5)Output Voltages: TOUT:±15V, ROUT:-0.3V to (VCC + 0.3V); (6)Driver/Receiver Output Short Circuited to GND:Continuous; (7)Continuous Power Dissipation (TA = +70℃):842mW; (8)Operating Temperature Ranges:0℃ to +70℃; (9)Storage Temperature Range:-65℃ to +160℃; (10)Lead Temperature (soldering, 10s):+300℃; (11)Soldering Temperature (reflow):+260℃.

Features

MAX232CPE features: (1)+3.0V to +5.5V; (2)Low-Power; (3)Up to 1Mbps; (4)True RS-232 Transceivers Using Four 0.1μF External Capacitors; (5)±15kV ESD-Protected; (6)+5V; (7)1μA; (8)Single RS-232 Transceiver with AutoShutdown.

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MAX232CPE+
MAX232CPE+
Maxim Integrated Products
RS-232 Interface IC 5V MultiCh RS-232 Driver/Receiver
Data Sheet
0-1: $2.32
1-25: $1.55
25-50: $1.12
50-100: $1.12
MAX232CPE
MAX232CPE
Maxim Integrated Products
RS-232 Interface IC 5V MultiCh RS-232 Driver/Receiver
Data Sheet
0-2020: $0.96
