Product Summary
The second member of the Dragon Ball family, the MC68EZ328PU16V, inherits the display capability of the original DragonBall processor but features a more flexible LCD controller with a streamlined list of peripherals placed in a smaller package. This processor of the MC68EZ328PU16V is mainly targeted for portable consumer products which require less peripherals and a more flexible LCD controller. By providing 3.3V, fully static operation in efficient 100 TQFP and 144 MAPBGA packages, the MC68EZ328PU16V delivers cost-effective performance to satisfy the extensive requirements of the portable consumer market.
Parametrics
MC68EZ328PU16V maximum ratings: (1)Supply voltage, Vcc: -0.3 to 7.0 V; (2)Input voltge, VIN: -0.3 to 7.0 V; (3)Operating temperation range, TA: TL to TH 0 to 70℃; (4)Storage temperature, Tstg: -55 to 150℃.
Features
MC68EZ328PU16V features: (1)Static 68EC000 Core Processor—Identical to MC68EC000 Microprocessor; (2)System Integration Module (SIM28-EZ), incorporating many functions typically related to external array; (3)logic; (4)DRAM Controller; (5)Serial Peripheral Interface Port; (6)16-Bit General Purpose Counter / Timer; (7)Real Time Clock / Sampling Timer; (8)LCD Controller; (9)Built-in Emulation Function.

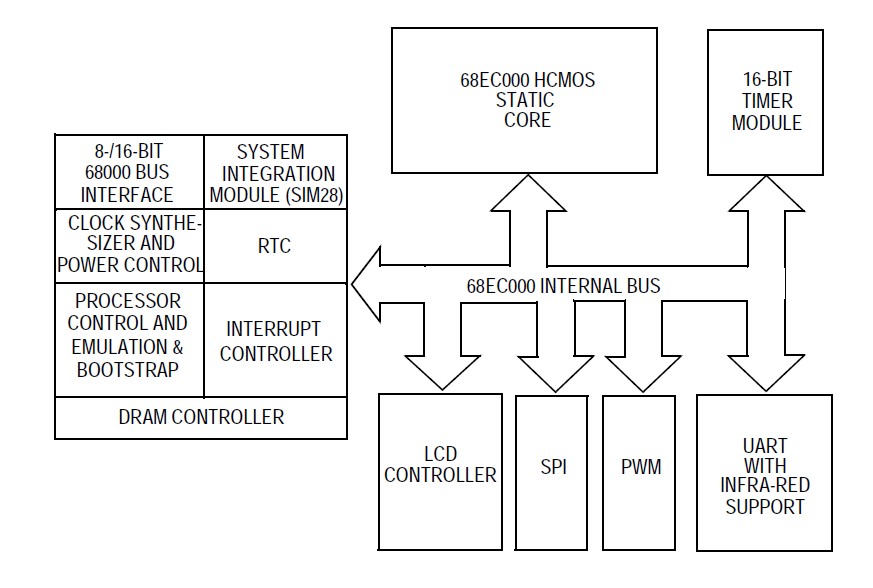

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||
---|---|---|---|---|---|---|---|---|---|---|

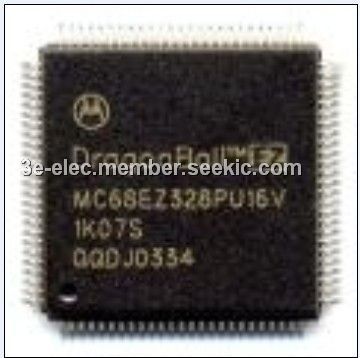

MC68EZ328PU16V |
Other |
Data Sheet |
Negotiable |
|
||||||
