Product Summary

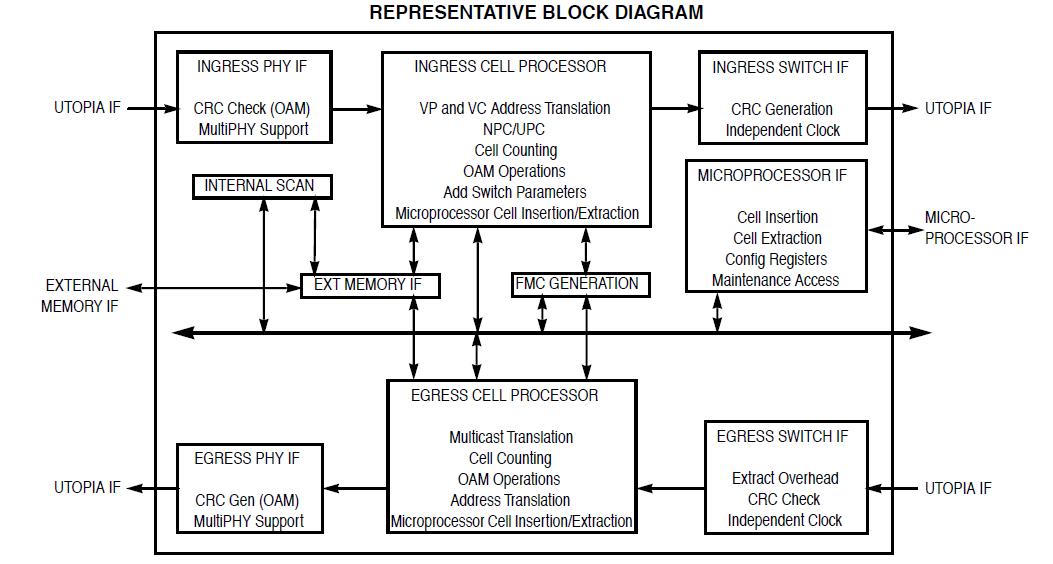

The MC92501GC is an ATM Cell Processor. The MC92501GC is an Asynchronous Transfer Mode (ATM) layer device composed of dedicated high-performance ingress and egress cell processors combined with UTOPIA Level 2-compliant physical (PHY) and switch interface ports (see Block Diagram). The MC92501GC is a second generation ATM cell processor in 92500 series.
Parametrics
MC92501GC absolute maximum ratings: (1)VDD, DC Supply Voltage: - 0.5 to 3.8 V; (2)Vin, DC Input Voltage (5 V Tolerant): - 0.5 to 5.8 V; (3)Vout, DC Output Voltage: - 0.5 to VDD +0.5 V; (4)I, DC Current Drain per Pin, Any Single Input or Output: ± 50 mA; (5)I, DC Current Drain VDD and VSS Pins: ± 100 mA; (6)Tstg, Storage Temperature: - 65 to 150℃; (7)TL, Lead Temperature (10-Second Soldering): 300℃.
Features
MC92501GC features: (1)Implements ATM Layer Functions for Broadband ISDN According to ATM; (2)Forum UNI 4.0 and TM 4.0 SpeciTcations, ITU Recommendations, and Bellcore Recommendations; (3)Provides ABR Relative Rate Marking and EFCI Marking According to TM 4.0; (4)Selective Discard CLP = 1 (or CLP = 0+1) Flow on Selected Connections; (5)UTOPIA Level 2 PHY Interface and UTOPIA ATM Layer Interface; (6)Supports Both Partial Packet Discard (PPD) and Early Packet Discard (EPD); (7)Change ABR RM Cell Priority; (8)Support for CLP Transparency.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 MC92501GC |
|
IC ATM CELL PROCESSOR 256-PBGA |
Data Sheet |
Negotiable |
|
||||
