Product Summary

The MD8087-2 is a type of Math CoProcessor which is an extension to the intel 8086/8088 microprocessor architecture. When combined with the intel 8086/8088 microprocessor, the MD8087-2 dramatically increase the processing speed of computer applications which utlize mathematical operation such as CAM, numberic controllers, CAD or graphics.

Parametrics

MD8087-2 maximum ratings: (1)Ambient temperature under bias: 0 to 70℃; (2)Storage temperature: -65 to +150℃; (3)Voltage on any pin with respect to ground: -1.0 to +7V; (4)Power dissipation: 3.0W.

Features

MD8087-2 features: (1)Compatible with IEEE floating point standard 754; (2)CPU/8087 supports 7data types: 16-, 32-, 64-bit integers, 32-, 64-, 80-bit floating point, and 18-digit BCD operands; (3)Available in 8 MHz; (4)Adds 8×80-bit individually addressable register stack to the 8086/8088 and 80186/80188 archiecture; (5)7 Built-in exception handling functions.

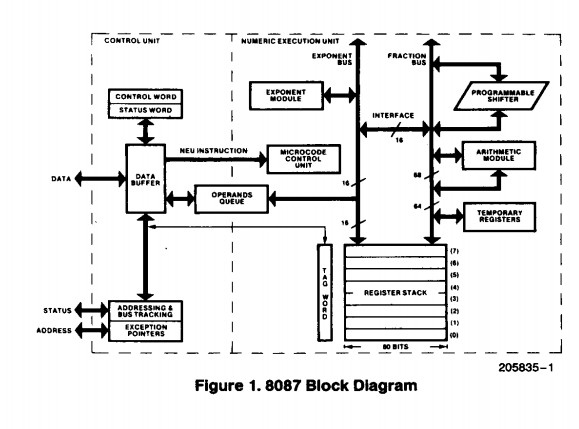

Diagrams
