MPC8245LZU266D

integrated processor, BGA, -0.3 to 3.6 V, 16-Kbyte data cache, system register unit

Rated 5 Rating 5 | reviews | Write a review

Price:: US $15.00~32.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $15.00~32.00

PartNumber:: MPC8245LZU266D

Brand:: Freescale Semiconductor, Inc - Freescale | Pack: BGA | D/C: 07+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Ken's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-02-20

From Other Seller

Part Number:MPC8245LZU266D
US $15.00 - 32.00
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
SIL9030CTU

US $2.50 - 5.10 / Piece
(0) Remove
Quantity:

piece

Product Summary

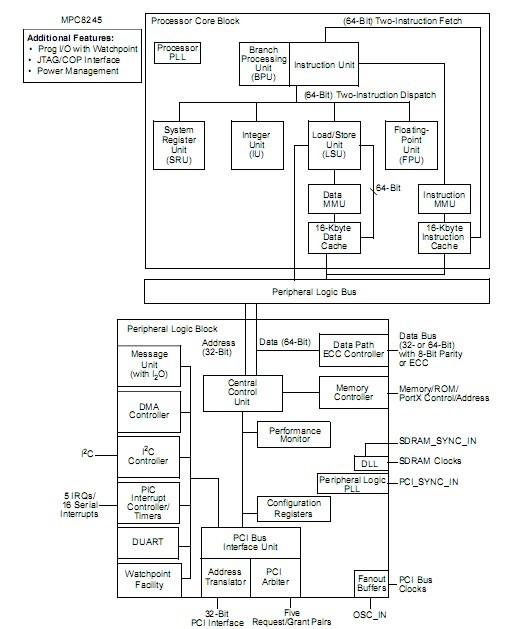

The MPC8245LZU266D is an integrated processor. It combines a PowerPC MPC603e processor core built on Power Architecture technology with a PCI bridge so that system designers can rapidly design systems using peripherals designed for PCI and the other standard interfaces. Also, a high-performance memory controller supports various types of ROM and SDRAM. The MPC8245LZU266D is the second of a family of products that provide system-level support for industry-standard interfaces with an MPC603e processor core.

Parametrics

MPC8245LZU266D absolute maximum ratings: (1)Supply voltage-CPU core and peripheral logic VDD: -0.3 to 2.25 V; (2)Supply voltage-memory bus drivers GVDD: -0.3 to 3.6 V; (3)Supply voltage-PCI and standard I/O buffers OVDD: -0.3 to 3.6 V; (4)Supply voltage-PLLs AVDD/AVDD: -0.3 to 2.25 V; (5)Supply voltage-PCI reference LVDD: -0.3 to 5.4V; (6)Input voltage Vin: -0.3 to 3.6 V; (7)Operational die-junction temperature range Tj: 0 to 105 ℃; (8)Storage temperature range Tstg: -55 to 150 ℃.

Features

MPC8245LZU266D features: (1)High-performance, superscalar processor core; (2)Integer unit (IU), floating-point unit (FPU) (software enabled or disabled), load/store unit (LSU), system register unit (SRU), and branch processing unit (BPU); (3)16-Kbyte instruction cache; (4)16-Kbyte data cache; (5)Lockable L1 caches!aEntire cache or on a per-way basis up to three of four ways; (6)Dynamic power management: 60xnap, doze, and sleep modes.
