Product Summary

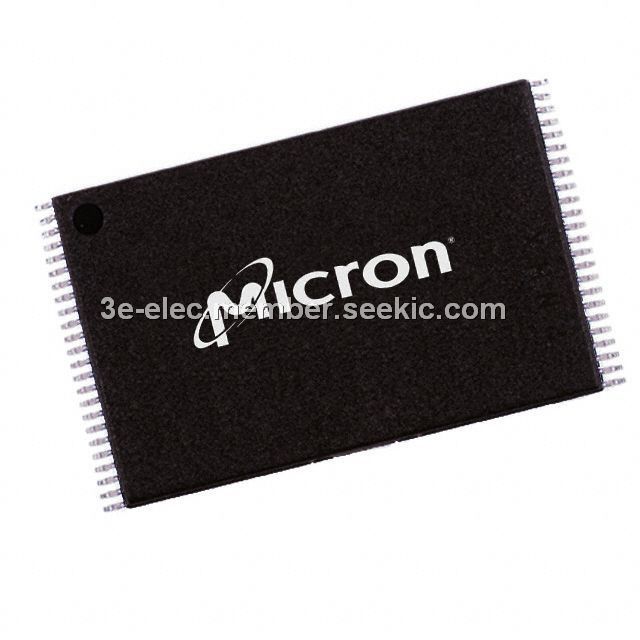

The MT28F800B5WG-8B is a nonvolatile, electrically block-erasable (Flash), programmable read-only memory containing 8,388,608 bits organized as 524,288 words (16 bits) or 1,048,576 bytes (8 bits). Writing or erasing the device is done with a 5V VPP voltage, while all operations are performed with a 5V VCC. Due to process technology advances, 5V VPP is optimal for application and production programming. The MT28F800B5WG-8B is fabricated with Micron advanced 0.18μm CMOS floating-gate process. The MT28F800B5WG-8B is organized into eleven separately erasable blocks. To ensure that critical firmware is protected from accidental erasure or overwrite, the device features a hardware-protected boot block. This block may be used to store code implemented in low-level system recovery. The remaining blocks vary in density and are written and erased with no additional security measures.
Parametrics
MT28F800B5WG-8B absolute maximum ratings: (1)Voltage on VCC Supply Relative to VSS: -0.5V TO +6V; (2)Input Voltage Relative to VSS: -0.5V TO +6V; (3)VPP Voltage Relative TO VSS: -0.5V TO +5.5V; RP# or A9 Pin Voltage Relative to Vss: -0.5V to +12.6; (4)Temperature Under Bias: -40℃ to +85℃; (5)Storage Temperature (plastic): -55℃ to +125℃; (6)Power Dissipation: 1W.
Features
MT28F800B5WG-8B features: (1)Eleven erase blocks: 16KB/8K-word boot block (protected); Two 8KB/4K-word parameter blocks; (2)Eight main memory blocks; (3)Smart 5 technology (B5): 5V ±10% VCC; (4)5V ±10% VPP application/production programming; (5)Advanced 0.18μm CMOS floating-gate process; (6)Compatible with 0.3μm Smart 5 device; (7)Address access time: 80ns; (8)100,000 ERASE cycles; (9)Industry-standard pinouts; (10)Automated write and erase algorithm; (11)Two-cycle WRITE/ERASE sequence; (12)TSOP and SOP packaging options; (13)Byte- or word-wide READ and WRITE (MT28F800B5, 1 Meg x 8/512K x 16).
