Product Summary

The TMS320C82GGP60 is a single chip, MIMD (multiple instruction/multiple data) parallel processor capable of performing over 1.5 billion operations per second. The The TMS320C82GGP60 consists of a 32-bit RISC Master Processor with a 120-MFlop IEEE Floating Point Unit, two 32-bit parallel-processing DSPs (PPs), and a Transfer Controller with up to 480 Mbyte/sec transfer rate. All the processors are tightly coupled via an on-chip crossbar which provides shared access to on-chip RAM. The TMS320C82GGP60 is ideally suited for video, imaging, and high-speed telecommunication applications.

Parametrics

TMS320C82GGP60 absolute maximum ratings: (1)Supply voltage range, VDD: -0.3 V to 4 V; (2)Input voltage range, VI : -0.3 V to 4 V; (3)Output voltage range: -0.3 V to 4 V; (4)Operating case temperature range, TC: 0 to 85℃; (5)Storage temperature range: -55 to 150℃.

Features

TMS320C82GGP60 features: (1)Single Chip Parallel MIMD DSP; (2)Over 1.5 Billion RISC-like Operations per Second; (3)Master Processor (MP): 32-Bit RISC Processor; IEEE-754 Floating Point; 4K-Byte Instruction Cache; 4K-Byte Data Cache; (4)Two Parallel Processors (PPs): 32-Bit Advanced DSP Processors; 64-Bit Opcode Provides Many Parallel Operations per Cycle; 4K-Byte Instruction Cache, 4K-Byte; Parameter RAM, and 8K Bytes of Data; (5)RAM per PP; (6)Transfer Controller (TC): 64-Bit Data Transfers; Up to 480M-Byte/s Transfer Rate; 32-Bit Addressing; Direct EDO DRAM/VRAM Interface; Direct SDRAM Interface; Dynamic Bus Sizing; Intelligent Queuing and Cycle Prioritization; (7)Big or Little Endian Operation; (8)44K Bytes of On-Chip RAM; (9)4G-Byte Address Space; (10)16.6 ns Cycle Time; (11)3.3-V Operation; (12)IEEE 1149.1 Test Port (JTAG).

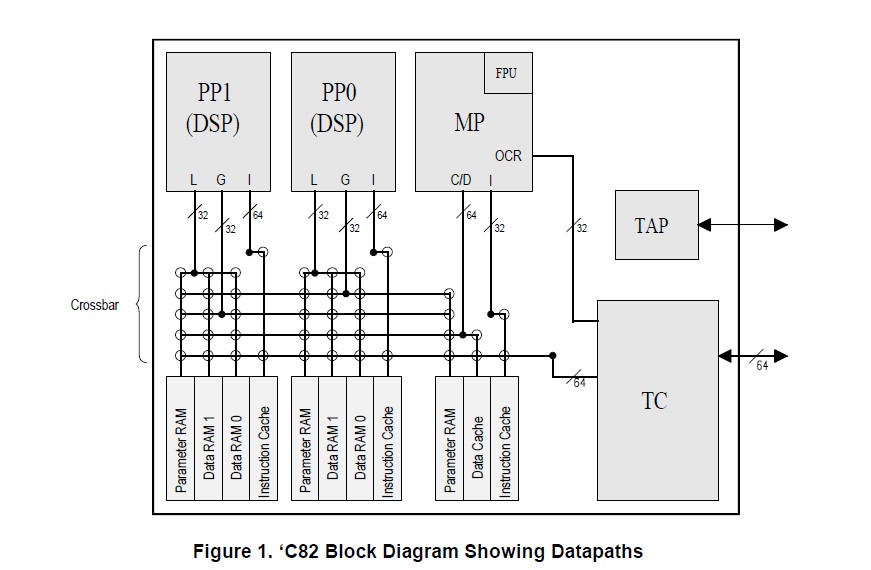

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
TMS320C82GGP60
TMS320C82GGP60


IC MIMD DSP 352-BGA

Data Sheet

Negotiable
