Product Summary

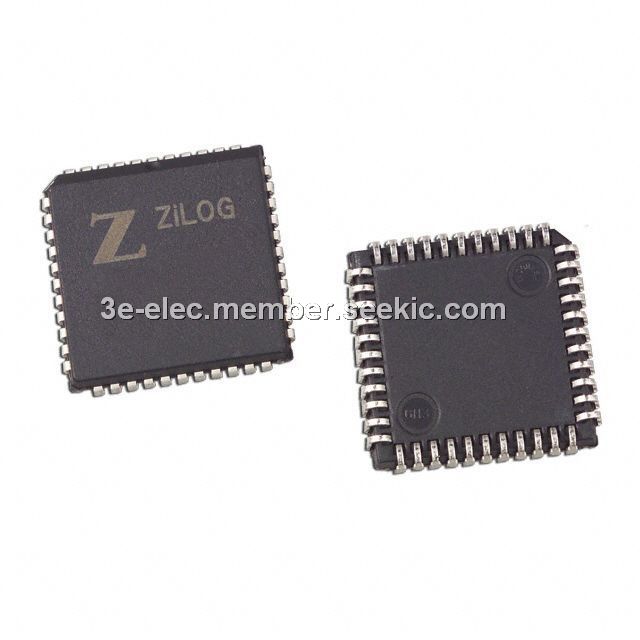

The Z8523008PSC is a communications controller.
Parametrics
Z8523008PSC absolute maximum ratings: (1)VCC supply voltage range: -0.3V to +0.7V; (2)voltages on all pins with respect to GND: -0.3 to VCC+0.3V; (3)operating abient temperature: 0 to 70℃; (4)storage temperature: -65 to +150℃.
Features
Z8523008PSC features: (1)VIH, input high voltage: 2.2V to VCC+0.3V; (2)VIL, input low voltage: -0.3V to 0.8V; (3)VOH1, output high voltage: 2.4V when IOH=-1.6mA; (4)VOH2, output high voltage: VCC-0.8V when IOH=-250μA; (5)VOL, output low voltage: 0.4V max IOL=+2.0mA; (6)IIL, input leakage: ±10.0μA when 0.4<VIN<+2.4V.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 Z8523008PSC |
ZiLOG |
Network Controller & Processor ICs 8MHz ESCC |
Data Sheet |
Negotiable |
|
||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||
 |
Z85230 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||
|
Z8523008PEC |
ZiLOG |
Network Controller & Processor ICs 8MHz ESCC XTEMP |
Data Sheet |
Negotiable |
|
||||||||||
|
Z8523008PEG |
ZiLOG |
Network Controller & Processor ICs 8MHz ESCC XTEMP |
Data Sheet |
|
|
||||||||||
|
Z8523008PSC |
ZiLOG |
Network Controller & Processor ICs 8MHz ESCC |
Data Sheet |
Negotiable |
|
||||||||||
|
Z8523008PSG |
ZiLOG |
Network Controller & Processor ICs 8MHz ESCC |
Data Sheet |
|
|
||||||||||
|
Z8523008VEC |
ZiLOG |
Network Controller & Processor ICs 8MHz ESCC XTEMP |
Data Sheet |
Negotiable |
|
||||||||||
