Product Summary
The NHPXA270C5C520 is a Processor.
Parametrics
NHPXA270C5C520 absolute maximum ratings: (1)Storage temperature: -40 to 125 ℃; (2)Offset voltage between any of the following pins: -0.3 to 0.3 V; (3)Offset voltage between any of the following pins: -0.3 to 0.3 V; (4)Offset voltage between any of the following pins: -0.3 to 0.3 V; (5)Offset voltage between any of the following pins: -0.3 to 0.3 V; (6)VCC_OH3 Offset voltage between VCC_LCD<0> and VCC_LCD<1>: -0.3 to 0.3 V; (7)Voltage applied to high-voltage supply pins; (8)(VCC_BB, VCC_USB, VCC_USIM, VCC_MEM,; (9)VCC_IO<, VCC_LCD): VSS-0.3 to VSS+4.0 V; (10)Voltage applied to low-voltage supply pins; (11)(VCC_CORE, VCC_PLL, VCC_SRAM): VSS-0.3 to VSS+1.45 V; (12)Voltage applied to non-supply pins except PXTAL_IN,; (13)PXTAL_OUT, TXTAL_IN, and TXTAL_OUT pins: VSS-0.3 to VSS+4.0 V.
Features
NHPXA270C5C520 features: (1)High-performance processor: Intel XScale microarchitecture with Intel Wireless MMX Technology, 7 Stage pipeline, 32 KB instruction cache, 32 KB data cache, 2 KB "mini" data cache, Extensive data buffering; (2)256 Kbytes of internal SRAM for high speed code or data storage preserved during low-power states; (3)High-speed baseband processor interface (Mobile Scalable Link); (4)Rich serial peripheral set: AC 7 audio port, I2S audio port, USB Client controller, USB Host controller.

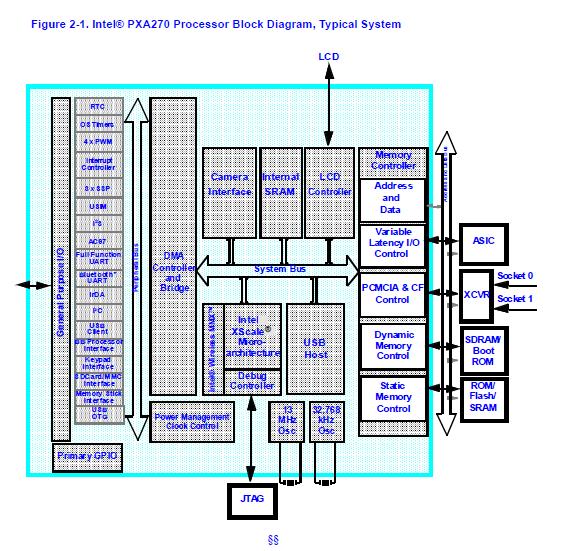

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |

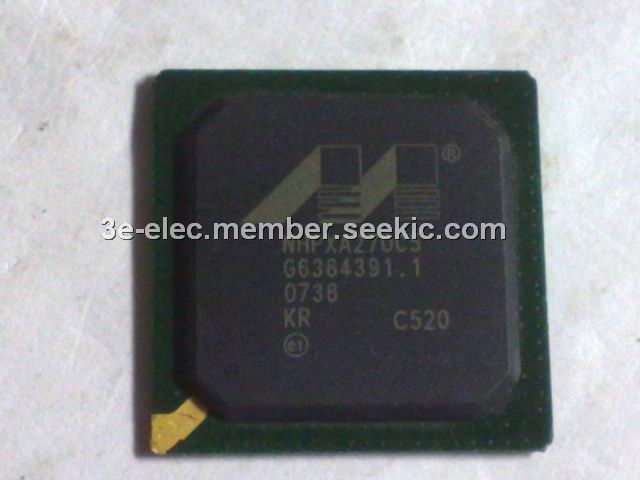

 NHPXA270C5C520 |
|
IC MPU 32BIT 520MHZ 356-PBGA |
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
NHPXA270C5C312 |
|
IC MPU 32BIT 312MHZ 356-PBGA |
Data Sheet |
Negotiable |
|
||||
|
NHPXA270C5C416 |
|
IC MPU 32BIT 416MHZ 356-PBGA |
Data Sheet |
Negotiable |
|
||||
|
NHPXA270C5C520 |
|
IC MPU 32BIT 520MHZ 356-PBGA |
Data Sheet |
Negotiable |
|
||||
