Product Summary
The SGTL5000XNAA3R2 is a Low Power Stereo CODEC with Headphone Amplifier. It is designed to provide a complete audio solution for portable products needing line-in, mic-in, line-out, headphone-out, and digital I/O. Deriving it is architecture from best in class Freescale integrated products that are currently on the market, the SGTL5000XNAA3R2 is able to achieve ultra low power with very high performance and functionality, all in one of the smallest footprints available. Target markets include portable media players, GPS units and smart phones. The SGTL5000XNAA3R2 features such as capless headphone design and an internal PLL help lower overall system cost.
Parametrics
SGTL5000XNAA3R2 absolute maximum ratings: (1)Stereo Line In: Support for external analog input: Codec bypass for low power; (2)MIC: MIC bias provided (5x5mm QFN, 3x3mm QFN TA2); Programmable MIC gain; (3)ADC: 85dB SNR (-60dB input) and -73dB THD+N (VDDA=1.8 V); (4)Line Out: 100dB SNR (-60dB input) and -85dB THD+N (VDDIO=3.3 V); (5)HP Output: 100dB SNR (-60dB input) and -80dB THD+N (VDDA=1.8 V, 16 ohm load, DAC to headphone); 45 mW max into 16 ohm load @ 3.3 V; Capless design; (6)I2S port to allow routing to Application Processor; (7)SGTL Surround, SGTL Bass, tone control/ parametric equalizer/graphic equalizer; (8)PLL allows input of 8 MHz to 27 MHz system clock - Standard audio clocks are derived from PLL; (9)Designed to operate from 1.62 to 3.6 volts; (10)Package: 3mm x 3mm 20 pin QFN; 5mm x 5mm 32 pin QFN.
Features
SGTL5000XNAA3R2 features: (1)Storage Temperature: -55 to 125℃; (2)Maximum Digital Voltage, VDDD: 1.98 V max; (3)Maximum Digital I/O Voltage - VDDIO: 3.6 V max; (4)Maximum Analog Supply Voltage - VDDA: 3.6 V max; (5)Maximum voltage on any digital input: GND-0.3 to VDDIO+0.3 V; (6)Maximum voltage on any analog input: GND-0.3 to VDDA+0.3 V.

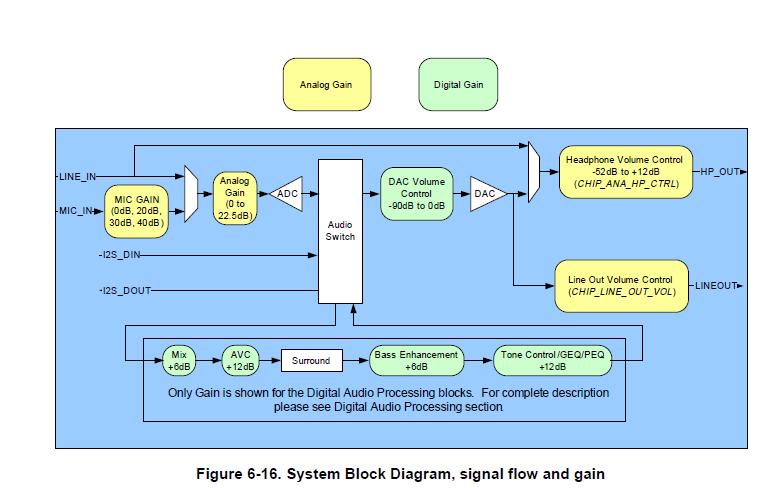

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SGTL5000XNAA3R2 |
Freescale Semiconductor |
Audio CODECs Audio Codex |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
|
SGTL5000XNAA3 |
Freescale Semiconductor |
Audio CODECs Audio Codex |
Data Sheet |
|
|
||||||||||||
|
SGTL5000XNAA3R2 |
Freescale Semiconductor |
Audio CODECs Audio Codex |
Data Sheet |
|
|
||||||||||||
 |
SGTL5000XNLA3R2 |
Freescale Semiconductor |
Audio CODECs Audio Codex |
Data Sheet |
|
|
||||||||||||
|
SGTL5000XNLA3 |
Freescale Semiconductor |
Audio CODECs Audio Codex |
Data Sheet |
|
|
||||||||||||
