Product Summary
The LP3875EMP-ADJ/NOPB fast ultra low-dropout linear regulator operates from a +2.5V to +7.0V input supply. These ultra low dropout linear regulators respond very quickly to step changes in load, which makes them suitable for low voltage microprocessor applications. The LP3875EMP-ADJ/NOPB is developed on a CMOS process which allows low quiescent current operation independent of output load current. This CMOS process also allows the LP3875EMP-ADJ/NOPB to operate under extremely low dropout conditions.
Parametrics
LP3875EMP-ADJ/NOPB absolute maximum ratings: (1)Storage Temperature Range: -65℃ to +150℃; (2)Lead Temperature (Soldering, 5 sec.): 260℃; (3)ESD Rating: 2 kV; (4)Power Dissipation: Internally Limited; (5)Input Supply Voltage (Survival): -0.3V to +7.5V; (6)Shutdown Input Voltage (Survival): -0.3V to +7.5V; (7)Output Voltage (Survival): -0.3V to +6.0V.
Features
LP3875EMP-ADJ/NOPB features: (1)Ultra low dropout voltage; (2)Low ground pin current; (3)Load regulation of 0.06%; (4)10nA quiescent current in shutdown mode; (5)Guaranteed output current of 1.5A DC; (6)Available in TO-263, TO-220 and SOT-223 packages; (7)Minimum output capacitor requirements; (8)Overtemperature/overcurrent protection; (9)-40℃ to +125℃ junction temperature range.

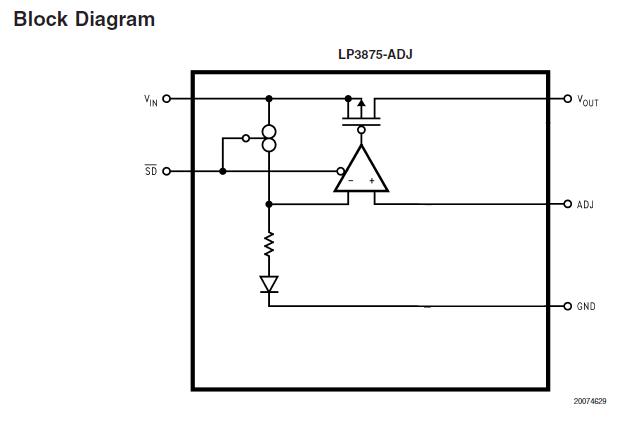

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LP3875EMP-ADJ/NOPB |
National Semiconductor (TI) |
Low Dropout (LDO) Regulators 1.5A FAST ULTRA LDO LINEAR REGULATOR |
Data Sheet |
|
|
||||||||||||
