Product Summary
The CPC1009N is a miniature low voltage, low on-resistance, low off-state leakage, 1-Form-A solid state relay in a 4-Pin SOP package. The MOSFET switches and photovoltaic die use Clare’s patented OptoMOS architecture to provide 1500 Vrms of input-to-output isolation. The optically coupled output is controlled by a highly efficient GaAIAs infrared LED. The applicantions of the CPC1009N include Instrumentation, Multiplexers, Data Acquisition, Electronic Switching, I/O Subsystems, Meters (Watt-Hour, Water, Gas), Medical Equipment—Patient/Equipment Isolation and so on.

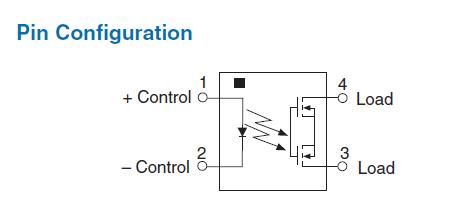

Parametrics
CPC1009N absolute maximum ratings: (1)Blocking Voltage: 100 VP; (2)Reverse Input Voltage: 5 V; (3)Input Control Current: 50 mA; (4)Peak (10ms): 1 A; (5)Input Power Dissipation: 70 mW; (6)Total PowerDissipation: 400 mW; (7)Isolation voltage Input to Output: 1500 Vrms; (8)Operational Temperature: -40 to +85 ℃; (9)Storage Temperature: -40 to +125 ℃.
Features
CPC1009N features: (1)Extremely Low Output Leakage; (2)1500Vrms Input/Output Isolation; (3)Small 4-Pin SOP Package; (4)Low Drive Power Requirements (TTL/CMOS Compatible); (5)No Moving Parts; (6)High Reliability; (7)Arc-Free With No Snubbing Circuits; (8)No EMI/RFI Generation; (9)Machine Insertable, Wave Solderable; (10)Tape & Reel Version Available.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 CPC1009N |
Clare |
Solid State Relays Dual 1-Form-A relay |
Data Sheet |
Negotiable |
|
||||
|
CPC1009NTR |
Clare |
Solid State Relays Dual 1-Form-A relay |
Data Sheet |
Negotiable |
|
||||
