Product Summary

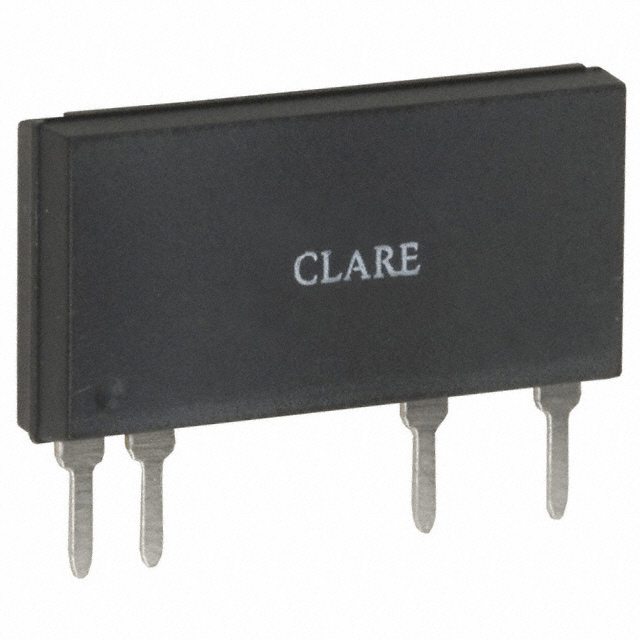

The CPC1965 is an AC Solid State Switch using patented waveguide coupling with dual power SCR outputs to produce an alternative to optocoupler and Triac circuits. The CPC1965 switches are robust enough to provide a blocking voltage of up to 600V. In addition, tightly controlled zero cross circuitry ensures switching of AC loads without the generation of transients. The input and output circuits are optically coupled to provide 3750V of isolation and noise immunity between control and load circuits. As a result the CPC1965 is well suited for industrial environments where electromagnetic interference would disrupt the operation of electromechanical relays.

Parametrics

CPC1965 absolute maximum ratings: (1)Input Power Dissipation: 1501 mW max; (2)Input Control Current: 100 mA max; Peak (10ms): 1 A max; (3)Reverse Input Voltage: 5 V max; (4)Total Package Dissipation, PD: 16002 mW max; (5)Isolation Voltage Input to Output: 3750VRMS min; (6)Operational Temperature: -40 - +85℃; (7)Storage Temperature: -40 - +125℃; (8)Soldering Temperature (10 Seconds Max.): +260℃ max.

Features

CPC1965 features: (1)Load Current up to 1A; (2)Blocking Voltage to 600V; (3)5mA Sensitivity; (4)Zero-Crossing Detection; (5)DC Control, AC Output; (6)Optically Isolated; (7)TTL and CMOS Compatible; (8)Low EMI and RFI Generation; (9)High Noise Immunity; (10)VDE compatible; (11)Machine Insertable, Wave Solderable.

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
CPC1965Y
CPC1965Y

Clare

Triac & SCR Output Optocouplers AC Switch

Data Sheet

Negotiable
CPC1965G
CPC1965G

Clare

Triac & SCR Output Optocouplers AC Switch

Data Sheet

Negotiable
