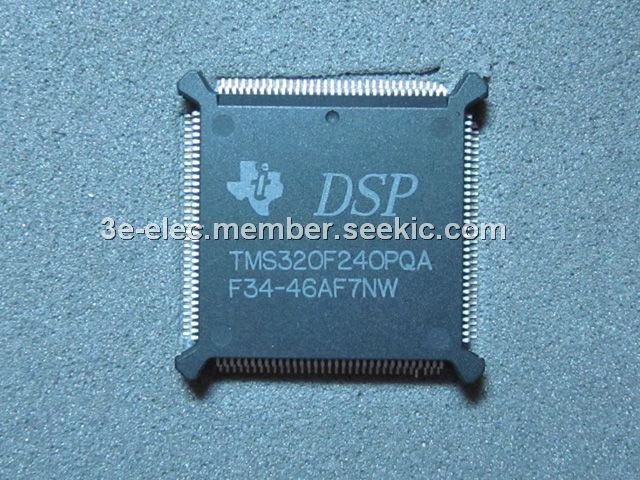

TMS320F240PQA

DSP controller, 132-QFP, -0.3V to 7V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $16.00~38.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $16.00~38.00

PartNumber:: TMS320F240PQA

Brand:: Texas Instruments - TI | Pack: QFP | D/C: 07+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Ken's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-02-20

From Other Seller

Part Number:TMS320F240PQA
US $16.00 - 38.00
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
iphone5 data cable

US $4.00 - 5.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

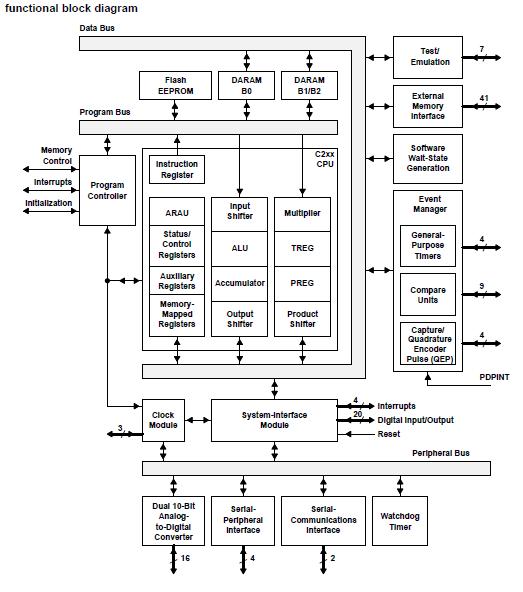

The TMS320F240PQA is a DSP controller. It is optimized for digital motor/motion control applications. The TMS320F240PQA DSP controller combines the enhanced TMS320 architectural design of the C2xLP core CPU for low-cost, high-performance processing capabilities and several advanced peripherals optimized for motor/motion control applications. The peripherals of the TMS320F240PQA include the event manager module, which provides general-purpose timers and compare registers to generate up to 12 PWM outputs, and a dual10-bit analog-to-digital converter (ADC), which can perform two simultaneous conversions within 6.1 μs.

Parametrics

TMS320F240PQA absolute maximum ratings: (1)Supply voltage range, VDD: -0.3 V to 7 V; (2)Input voltage range: -0.3 V to 7 V; (3)Output voltage range: -0.3 V to 7 V; (4)Operating free-air temperature range, TA: L version: 0 to 70℃; A version: -40℃ to 85℃; S, Q versions: -40℃ to125℃; (5)Storage temperature range, Tstg: 55℃ to 150℃.

Features

TMS320F240PQA features: (1)High-Performance Static CMOS Technology; (2)Dual 10-Bit Analog-to-Digital Conversion Module; (3)28 Individually Programmable, Multiplexed I/O Pins; (4)Phase-Locked-Loop (PLL)-Based Clock Module; (5)Watchdog Timer Module (With Real-Time Interrupt); (6)Serial Communications Interface (SCI) Module; (7)Serial Peripheral Interface (SPI) Module; (8)Six External Interrupts (Power Drive Protect, Reset, NMI, and Three Maskable Interrupts); (9)Four Power-Down Modes for Low-Power Operation; (10)Scan-Based Emulation.
