Product Summary
The bi-polar long-term timer U6046B-MFPG3Y is designed to automatically limit the operation time of high loads in the harsh automotive environment with a preset delay time. With the power-on-reset function the timers guarantee that current consuming devices are not operated unintentionally. The delay time can be interrupted manually, but a retrigger function is not provided.
Parametrics
U6046B-MFPG3Y absolute maixmum ratings: (1)Operating voltage, static, 5 min VBatt: 24 V; (2)Ambient temperature range Tamb: –40 to +125 ℃; (3)Storage temperature range Tstg: –55 to +125 ℃; (4)Junction temperature Tj: 150 ℃.
Features
U6046B-MFPG3Y features: (1)Delay Time Range: 3.7s to 20h; (2)RC Oscillator Determines Timing Characteristics; (3)Relay Driver with Z-diode; (4)Debounced Input for Toggle Switch; (5)Two Debounced Inputs: ON and OFF; (6)Load-dump Protection; (7)RF Interference Protected; (8)Protection According to ISO/TR7637-1 (VDE 0839); (9)Inputs Switched to VBatt.

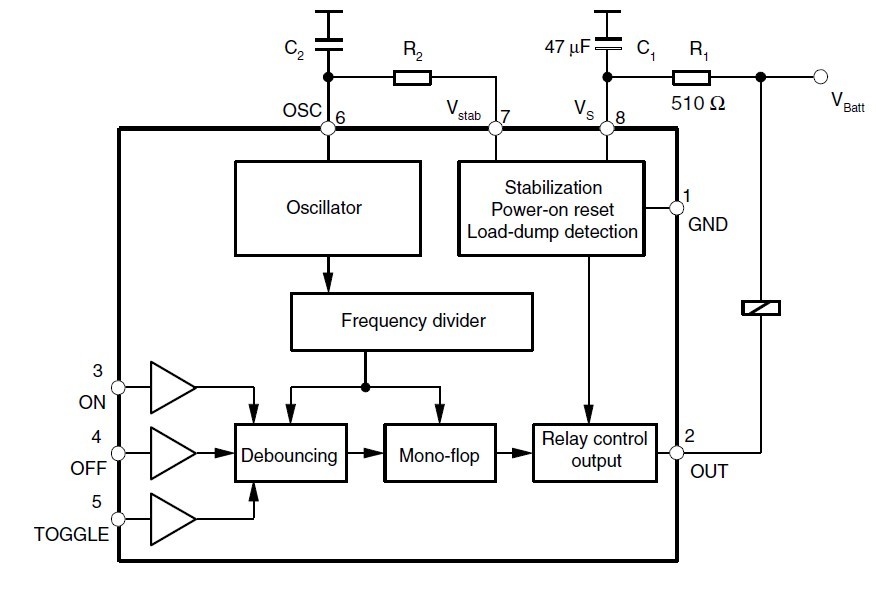

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 U6046B-MFPG3Y |
Atmel |
Timers & Support Products TIMER |
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
 |
U6043B |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
U6043B-M |
|
IC FLASHER 18M OHM SHUNT 8-DIP |
Data Sheet |
Negotiable |
|
||||
|
U6043B-MFP |
|
IC FLASHER 18M OHM SHUNT 8-SOIC |
Data Sheet |
Negotiable |
|
||||
|
U6043B-MFPG3 |
|
IC FLASHER 18M OHM SHUNT 8-SOIC |
Data Sheet |
Negotiable |
|
||||
|
U6043B-MFPG3Y |
Atmel |
Motor / Motion / Ignition Controllers & Drivers Flasher |
Data Sheet |
Negotiable |
|
||||
|
U6043B-MFPY |
Atmel |
Motor / Motion / Ignition Controllers & Drivers Flasher |
Data Sheet |
Negotiable |
|
||||
