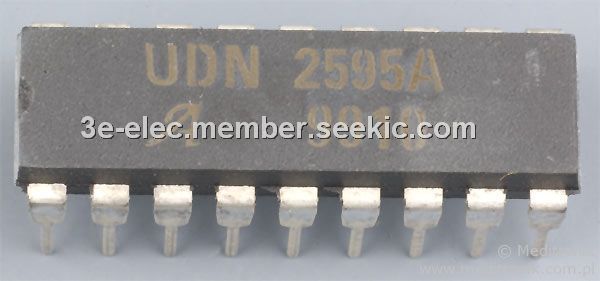

Product Summary
The UDN2595A is developed for use with low-voltage LED and incandescent displays requiring low output saturation voltage. The UDN2595A and A2595SLW meet many interface needs, including those exceeding the capabilities of standard logic buffers. The eight non-Darlington outputs of each driver can continuously and simultaneously sink load currents of 100 mA at ambient temperatures of up to +75℃ .
Parametrics
UDN2595A absolute maximum ratings: (1)Output Voltage, VCE: 20 V; (2)Supply Voltage, VS: 20 V; (3)Input Voltage, VIN: 20 V; (4)Output Current, lC:200 mA; (5)Ground Terminal Current, IGND:1.6 A; (6)Operating Temperature Range, TA: -20℃ to +85℃ ; (7)Storage Temperature Range, TS: -55℃ to +150.
Features
UDN2595A features: (1)Non-Inverting Function(Input Low = Output ON); (2)200 mA Current Rating: 100 mA Continuous and Simultaneous (All outputs) to +85℃ ; (3)Low Saturation Voltage; (4)TTL, CMOS, NMOS Compatible; (5)Efficient Input/Output Pin Format; (6)DIP or SOIC Packaging.

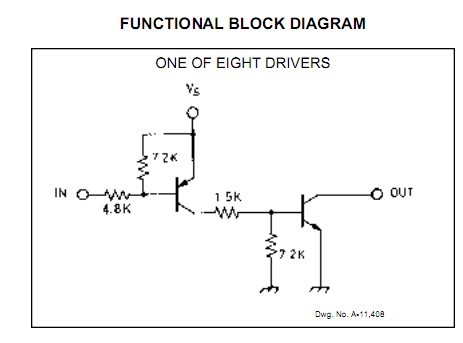

Diagrams
 |
