Product Summary

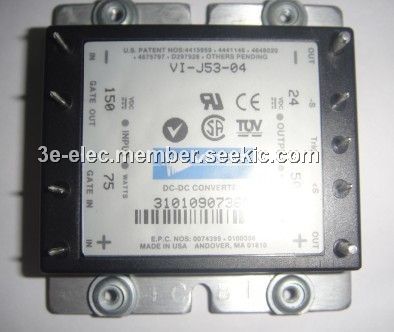

The VI-J53-04 is a component-level DC-DC converter. It offers up to 100W of isolated and regulated power in a board mounted package. At one-half the size and twice the power density of previous 100W modules, and with a maximum operating temperature rating of 100℃, the VI-J53-04 opens new horizons for board-mounted (distributed) power architectures.
Parametrics
VI-J53-04 absolute maximum ratings: (1)Operating Temperature: -55 to +150℃; (2)Supply Voltage: 2.7 V to 5.5 V; (3)Dissipation Power: 60W.
Features
VI-J53-04 features: (1)Up to 50W/Cubic Inch; (2)UL, CSA, TUV, VDE, BABT; (3)CE Marked; (4)Up to 90% Efficiency; (5)Size: 57,9 x 61,0 x 12,7; (6)Remote Sense and Current Limit; (7)Logic Disable; (8)Wide Range Output Adjust; (9)ZCS Power Architecture; (10)Low Noise FM Control.

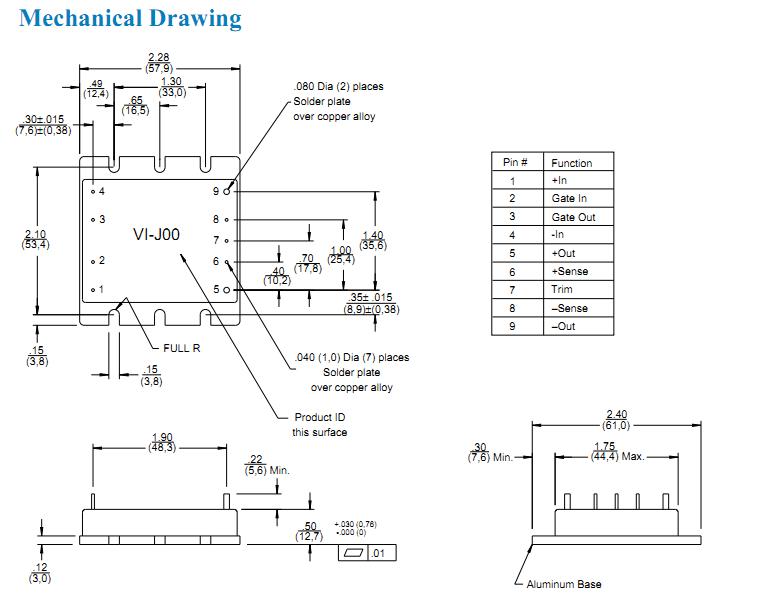

Diagrams
 |
