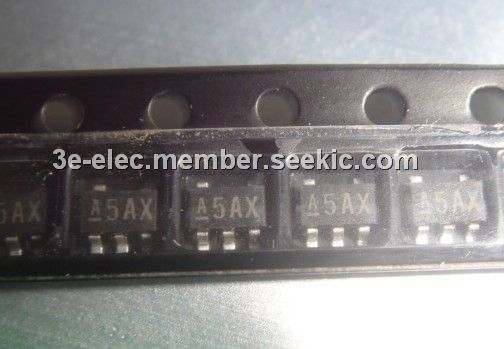

Product Summary

The XC6367A503M is a multi-functional step-up DC/DCconverter controller with built-in high speed, low ON resistancedrivers. Large output currents are possible using an externallyconnected transistor, coil, diode and capacitor.Output voltage is selectable in 100mV increments within arange of 1.5V ~ 6.5V (±2.5%). For output voltages outside thisrange, we recommend FB version, which has a 1.0V internalreference voltage. Using the FB version, the required outputvoltage can be set-up using 2 external resistors.With a 300kHz oscillation frequency, the size of the externalcomponents can be reduced. Control switches from PWM to PFM during light loads with the XC6367A503M (PWM/PFM switchable) and the series is highlyefficient from light loads to large output currents. Soft start time of XC6367A503M, B, and C series is internally setto 10msec and XC6367A503M, D, and F series regulate soft-starttime by connecting resistors and capacitors externally. During stand-by (CE pin "Low"), supply current is reduced toless than 0.5μA.

Parametrics

XC6367A503M absolute maximum ratings: (1)VDD Pin Voltage: VDD -0.3 ~ +12.0V; (2)VOUT Pin Voltage: VOUT -0.3 ~ +12.0V; (3)FB Pin Voltage: VFB -0.3 ~ +12.0V; (4)CE Pin Voltage: VCE -0.3 ~ +12.0V; (5)EXT Pin Voltage: VEXT -0.3 ~ VDD+0.3V; (6)EXT Pin Current: IEXT ±100mA; (7)Power Dissipation: Pd 150mW; (8)Operating Temperature Range: Topr-30 ~ +80℃; (9)Storage Temperature Range: Tstg -40 ~ +125℃.

Features

XC6367A503M features: (1)Input Voltage Range : 0.9~10.0V; (2)Output Voltage Range : 1.5~6.5V(±2.5%); (3)Oscillator Frequency : 300kHz(±15%); (4)PWM/PFM Switching Control (XC6368); (5)High Efficiency: 84% (TYP.); (6)SOT-25 Package.

Diagrams

XC6367A503M block diagram
