Product Summary
The DAC08EPZ is a 8-bit monolithic digital-to-analog converter. It provides very high speed performance coupled with low cost and outstanding applications flexibility. The applications of the DAC08EPZ include 8-bit, 1 μs A/D converters, servo motor and pen drivers, waveform generators, audio encoders and attenuators, analog meter drivers, programmable power supplies, LCD display drivers, high speed modems, and other applications where low cost, high speed, and complete input/output versatility are required.
Parametrics
DAC08EPZ absolute maximum ratings: (1)Operating Temperature: 0 to +70℃; (2)Junction Temperature (TJ): -65 to +150℃; (3)Storage Temperature Q Package: -65 to +150℃; (4)Storage Temperature P Package: 65 to +125℃; (5)Lead Temperature (Soldering, 60 sec): 300℃; (6)V+ Supply to V. Supply: 36 V; (7)Logic Inputs: V- to V- + 36 V; (8)VLC: V- to V+; (9)Analog Current Outputs (at VS. = 15 V): 4.25 mA; (10)Reference Input (V14 to V15): V- to V+; (11)Reference Input Differential Voltage (V14 to V15): ±18 V; (12)Reference Input Current (I14): 5.0 mA.
Features
DAC08EPZ features: (1)Fast settling output current: 85 ns; (2)Full-scale current prematched to ±1 LSB; (3)Direct interface to TTL, CMOS, ECL, HTL, PMOS; (4)Nonlinearity to 0.1% maximum over temperature range; (5)High output impedance and compliance: .10 V to +18 V; (6)Complementary current outputs; (7)Wide range multiplying capability: 1 MHz bandwidth; (8)Low FS current drift: ±10 ppm/℃; (9)Wide power supply range: ±4.5 V to ±18 V; (10)Low power consumption: 33 mW @ ±5 V; (11)Low cost.

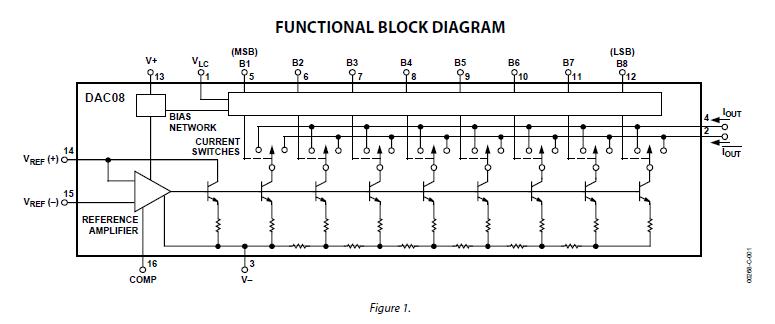

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

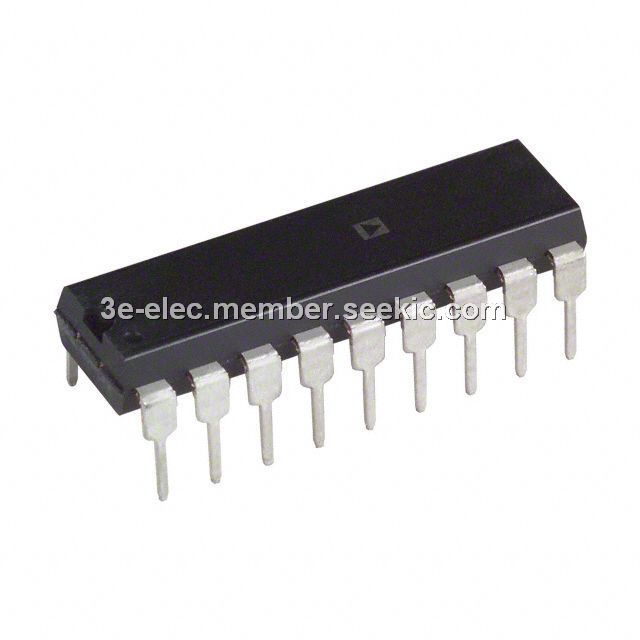

 DAC08EPZ |
|
IC DAC 8BIT MULTIPLY HS 16-DIP |
