Product Summary
The Altera EP1K10TC100-3 enhanced configuration device is a single-device, high-speed, advanced configuration solution for very high-density FPGAs. The core of an enhanced configuration device is divided into two major blocks: a configuration controller and a flash memory. The flash memory of EP1K10TC100-3 is used to store configuration data for systems made up of one or more Altera FPGAs. Unused portions of the EP1K10TC100-3 flash memory can be used to store processor code or data that can be accessed via the external flash interface after FPGA configuration is complete.
Parametrics
EP1K10TC100-3 absolute maximum ratings: (1)Supply voltage: -0.2 to 4.6 V With respect to ground; (2)DC input voltage: -0.5 to 3.6 V With respect to ground; (3)DC VCC or ground current: 100 mA; (4)DC output current, per pin: -25 to 25 mA; (5)Power dissipation: 360 mW; (6)Storage temperature: -65 to 150 ℃; (7)Ambient temperature: -65 to 135 ℃; (8)Junction temperature: 135 ℃.
Features
EP1K10TC100-3 features: (1)Single-chip configuration solution for Altera ACEX 1K, APEX 20K (including APEX 20K, APEX 20KC, and APEX 20KE), APEX II, Arria GX, Cyclone, Cyclone II, FLEXR 10K (including FLEX 10KE and FLEX 10KA), Mercury, Stratix II, and Stratix II GX devices; (2)Contains 4-, 8-, and 16-Mbit flash memories for configuration data storage; (3)Standard flash die and a controller die combined into single stacked chip package; (4)External flash interface supports parallel programming of flash and external processor access to unused portions of memory; (5)Page mode support for remote and local reconfiguration with up to eight configurations for the entire system; (6)Supports byte-wide configuration mode fast passive parallel (FPP); 8-bit data output per DCLK cycle; (7)Supports true n-bit concurrent configuration (n = 1, 2, 4, and 8) of Altera FPGAs.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

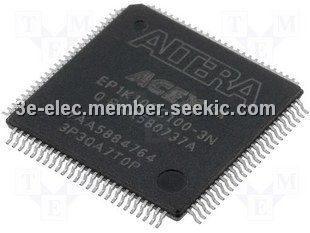

 EP1K10TC100-3 |
|
IC ACEX 1K FPGA 10K 100-TQFP |
Data Sheet |
|
|
||||||
|
EP1K10TC100-3N |
|
IC ACEX 1K FPGA 10K 100-TQFP |
Data Sheet |
|
|
||||||
